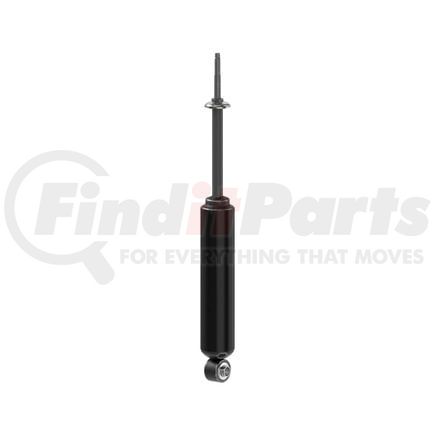

(888) 312-8812 Login SignupMONROE 34900 Monroe Shocks & Struts Gas-Magnum 34900 Shock Absorber
Tap to view 5 more
MSRP: $81.30
$4349
Save $37.81
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 28
MONROE 34900 Part Description
Manufacturer
Product Description
Gas-Magnum Suspension Shock Absorber
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 34900 Specifications
Product Attributes
| Lower Mount Code | LS38 |
| Upper Mount Code | S4 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 10.625 IN |
| Extended Length | 15.875 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Parts Pack(s) | P01135 |
| Travel Length | 5.25 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 269.9 MM |
| Extended Length | 403.2 MM |
| Travel Length | 133.4 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598469175 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 34900 Cross References
| Brand | Part Number |
|---|---|
| 34900MM | |
| BILSTEIN | 24184656 |
| Duralast | TS3230261B |
| Ford | D9UZ18124A, E6UZ18124A, E6UZ18124B, E6UZ18124J, E6UZ18125A, E6UZ18125B, E7XZ18124A, E7XZ18125B, F7AZ18124VB, F7AZ18125UA, FOUZ18124A, FOUZ18125B |
| GABRIEL | G63386, 58500, 58386, 61521 |
| KYB | 344264, 344272, KG5406 |
| KYB AMERICA LLC. | KG5406, KG5497 |
| MERITOR | MG60023 |
| MONROE VINTAGE | 5046 |
| MOTORCRAFT | AX277A, AX122A |
| MasterPro Shocks and Struts | FD121 |
| Monroe Shocks & Struts | 5046 |
| NAPA | SH81242, SH81484 |
| NAPA Proformer | SH81242 |
| NAPA Shocks | 76900 |
MONROE 34900 Fits Vehicles
- Ford F-350 (1967-1979)
- Ford F-250 (1962-1979)
- Ford F-150 (1975-1979)
- Ford F-100 (1965-1979)
- Ford E-350 Econoline Club Wagon (1977-1991)
- Ford E-350 Econoline (1975-1991)
- Ford E-250 Econoline Club Wagon (1975-1991)
- Ford E-250 Econoline (1975-1991)
- Ford Bronco (1966-1977)
