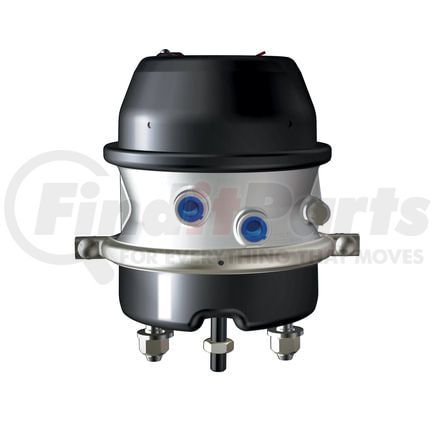

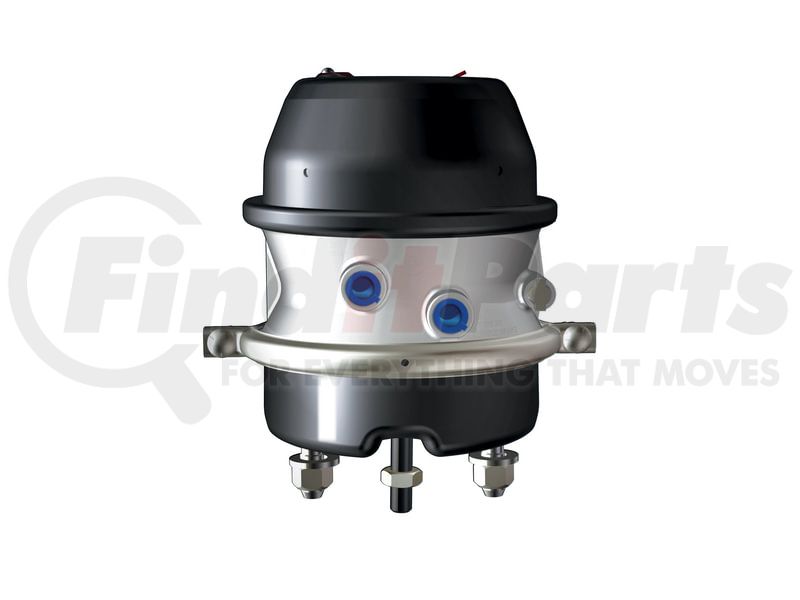

MGM Brakes 3624051 - Air Brake Chamber - 3624 Series, Combination, 2.50" Stroke, Model TR2430LHD
- Part Number
- 3624051
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - 3624 Series, Combination, 2.50" Stroke, Model TR2430LHD
details
$19149
2 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.580
Port Size: 3/8-18 NPTF
Stroke (in.): 2.50
Service Size: 24
Spring Size: 30
Features & Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- 360 Aluminum Center Case
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 303 & 3036 Aftermarket Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Heavy-Duty Power Spring 160 lb (72.6 kg) Additional Parking Brake Force @ 1.25 inches (31.8mm) of Stroke
- Center Hole Diaphragm
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Data
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Combination | 18.6 lb (8.4 kg) |
| Weight lb (kg) SIngle | 11.7 lb (5.3 kg) |
| A | 9.04" (229.6 mm) |
| B | 6.91" (175.5 mm) |
| C | 7.38" (187.5 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| G | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Replacement Parts
| 1 | Kit -NP Chamber (a) | 9015219 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216025 |
| 4 | Diaphragm | 8017141 |
| 5 | Kit -Push-Rod Assembly (a) SAE | 9064002 |
| 5a | Kit -Push-Rod Assembly (a) METRIC | 9064016 |
| 6 | Return Spring | 8068002 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 8215294 |
| 9 | Kit -Nuts & washers SAE | 9002001 |
| 9a | Kit -Nuts & Washers METRIC | 9002002 |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 10a | Hex Nut -Yoke METRIC | 8130016 |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Release Bolt | 9007003 |
| 13 | Kit -Piggyback Plus SAE | 3624008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
