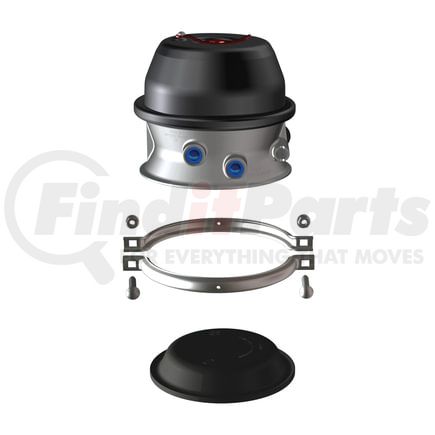

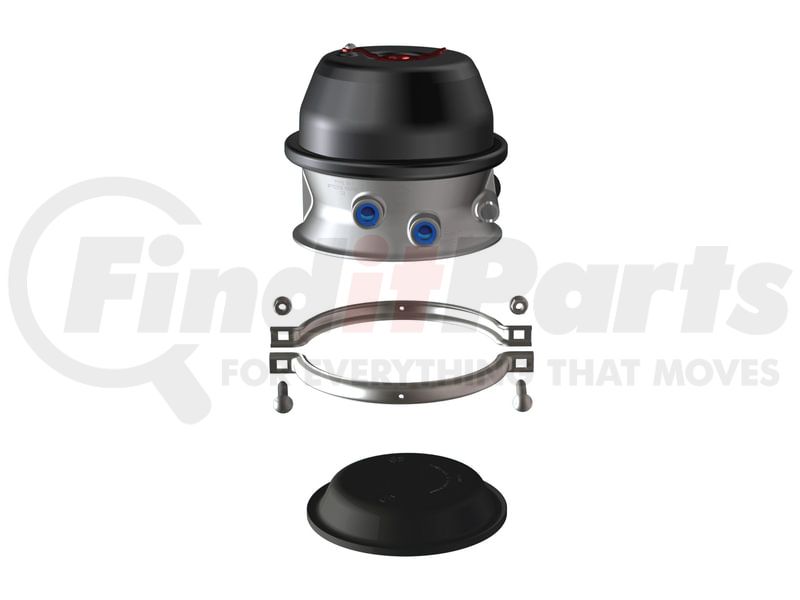

MGM Brakes 3437008 - Air Brake Spring Brake - 3437 Series, Piggyback Plus Kit, Model TR3636
- Part Number
- 3437008
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Spring Brake - 3437 Series, Piggyback Plus Kit, Model TR3636
details
$25349
MSRP: $314.59
Save: $61.10
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
Service Size: 36
Spring Size: 36
Features & Benefits
- Tamper Resistant Design
- Externally Stored Release Bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- "Long Life" Power Spring
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm
- Heavy-Duty Nylon Reinforced Neoprene Diaphragm (Optional)
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Single | 20.2 lb (9.2 kg) |
| B | 8.38" (212.9 mm) |
| C | 9.25" (235.0 mm) |
| D | 9.18" (233.2 mm) |
| Inlets | 3/8" - 18 NPTF |
Replacement Parts
| 1 | Kit -NP Chamber | N/A |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216036 |
| 4 | Diaphragm | 8017836 |
| 5 | Kit -Push-Rod Assembly SAE | N/A |
| 5a | Kit -Push-Rod Assembly METRIC | N/A |
| 6 | Return Spring | N/A |
| 7 | Kit -Center Hole Shield | N/A |
| 8 | NP Chamber Assembly | N/A |
| 9 | Kit -Nuts & Washers SAE | N/A |
| 9a | Kit -Nuts & Washers METRIC | N/A |
| 10 | Hex Nut -Yoke SAE | N/A |
| 10a | Hex Nut -Yoke METRIC | N/A |
| 11 | Kit -Weatherseal Plug | 9019006 |
| 12 | Kit -Release Bolt | 9007009 |
