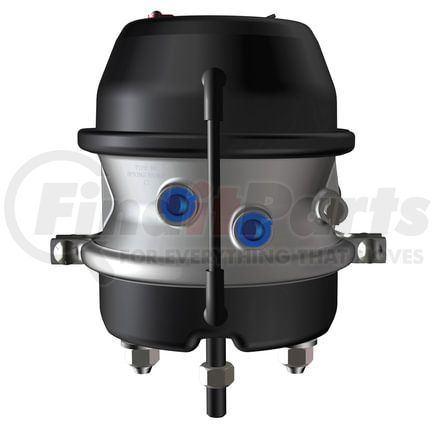

MGM Brakes 3431651 - Air Brake Spring Brake - Transit, 3/4 Inch x 18 Inch Push-Rod
- Part Number
- 3431651
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Spring Brake - Transit, 3/4 Inch x 18 Inch Push-Rod
details
$17899
15 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Dump Truck/Trailer
Features and Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Externally Stored Release Bolt
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- 360 Aluminum Center Case
- "Long Life" Power Spring
- Epoxy Coated Return Spring
- Weatherseal Plug
- Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3060 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
- Stroke Alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- External Breather Tube
- Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Technical Specifications
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Combination | 19.4 lb (8.8 kg) |
| Weight lb (kg) Single | 11.3 lb (5.1 kg) |
| A | 9.04" (229.6 mm) |
| B | 6.66" (169.2 mm) |
| C | 8.31" (211.1 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| G | 5/8" - 18 UNF (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| X - Min. (aftermarket unit only) | 18.00" |
