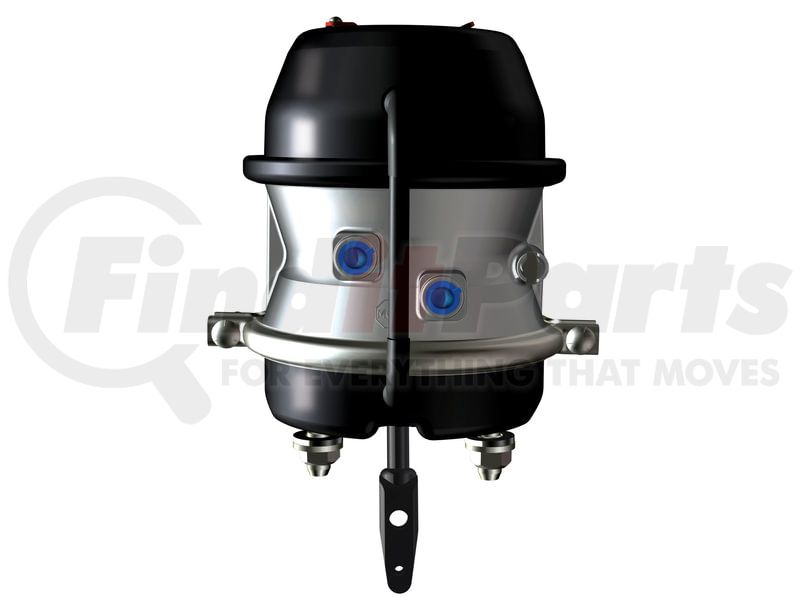

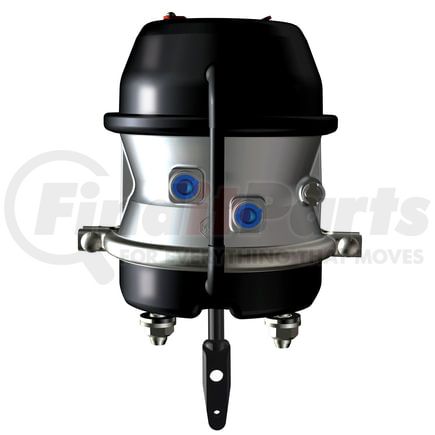

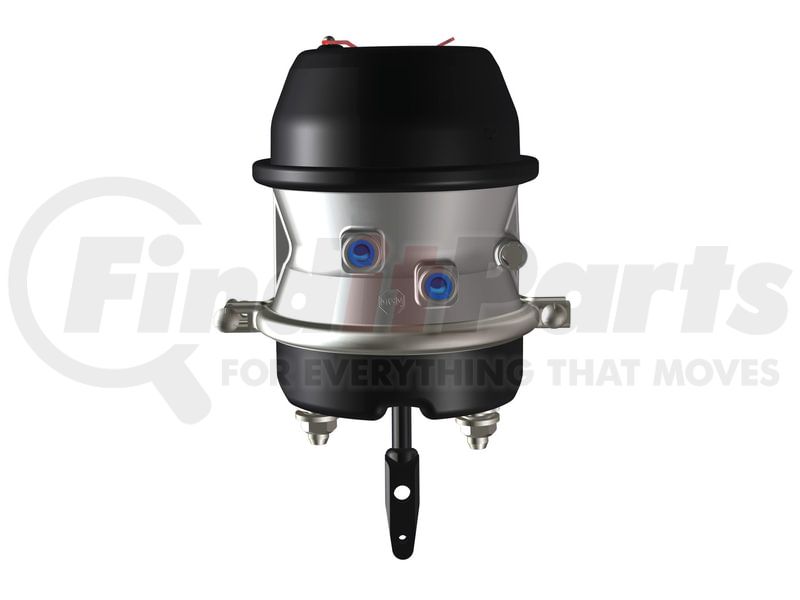

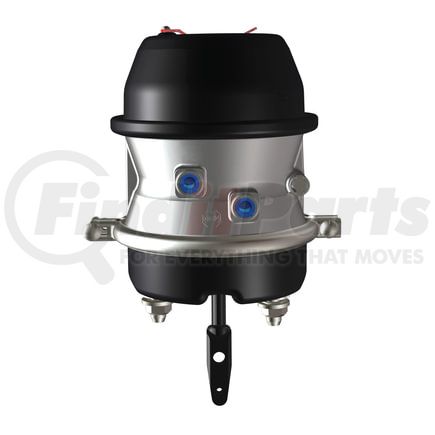

MGM Brakes 3232951X - Air Brake Chamber - Combination, 2.25" Welded Yoke
- Part Number
- 3232951X
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, 2.25" Welded Yoke
details
$21208
MSRP: $397.41
Save: $185.33
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Port Size: 3/8-18 NPTF
Welded Yoke
Stroke (in.): 3.00
Service Size: 30
Spring Size: 30
Features & Benefits
- Tamper Resistant Design
- Center Hole Diaphragm
- Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy Coated Return Spring
- Center Hole Shield
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge on All Other Sizes)
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Stroke Alert
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- Molded Nitrile Rubber Air Seal
- Heavy-Duty Power Spring 145 lb (65.8 kg) Additional Parking Brake Force @ 1.25 inches (31.8 mm) Of Stroke
- Composite Guide -Corrosion Fighter Technology
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 20.4 lb (9.3 kg) |
| Weight lb (kg) Single | 11.7 lb (5.3 kg) |
| A | 9.99" (253.7 mm) |
| B | 7.61" (193.3 mm) |
| C | 8.32" (211.3 mm) |
| D | 8.21" (208.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| Y | 2.25" |
Replacement Parts
| 1 | Kit -NP Chamber (a) | 9015904 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216045 |
| 4 | Diaphragm | 8017830 |
| 5 | Kit -Push-Rod Assembly (a) SAE w/ Welded Yoke | 9075001 |
| 6 | Return Spring | 8068012 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 8215501 |
| 9 | Kit -Nuts & Washers SAE | 9002001 |
| 10 | Hex Nut -Yoke SAE | N/A |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Release Bolt | 9007003 |
| 13 | Kit -Piggyback Plus SAE | 3232008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
Features & Benefits
- High-strength steel housing provides exceptional durability and resistance to corrosion in demanding environments
- Durable diaphragm design ensures optimal air pressure conversion, delivering consistent braking force and enhancing safety
- Advanced sealing technology prevents air leakage, maintaining system efficiency and reducing maintenance requirements
- Rugged construction minimizes wear and tear, extending the lifespan of the braking system and lowering operational costs
- Guarantees easy installation, seamless integration, and compatibility with various brake systems
- A practical choice for both professional mechanics and fleet operators aiming for maximum uptime and reliability
Product Description
Features & Benefits
- High-strength steel housing provides exceptional durability and resistance to corrosion in demanding environments
- Durable diaphragm design ensures optimal air pressure conversion, delivering consistent braking force and enhancing safety
- Advanced sealing technology prevents air leakage, maintaining system efficiency and reducing maintenance requirements
- Rugged construction minimizes wear and tear, extending the lifespan of the braking system and lowering operational costs
- Guarantees easy installation, seamless integration, and compatibility with various brake systems
- A practical choice for both professional mechanics and fleet operators aiming for maximum uptime and reliability
MGM Brakes Air Brake Chamber
The MGM Brakes Air Brake Chamber is engineered for superior performance and reliability in commercial vehicles, meeting the rigorous demands of modern transportation. It ensures efficient braking by converting air pressure into mechanical force, providing robust stopping power essential for heavy-duty applications. This air brake chamber is designed to withstand harsh conditions, ensuring consistent and reliable performance. Engineered to meet or exceed OEM specifications, the MGM Brakes 3232951X guarantees a precise fit and reliable performance across a wide range of commercial vehicle models.
