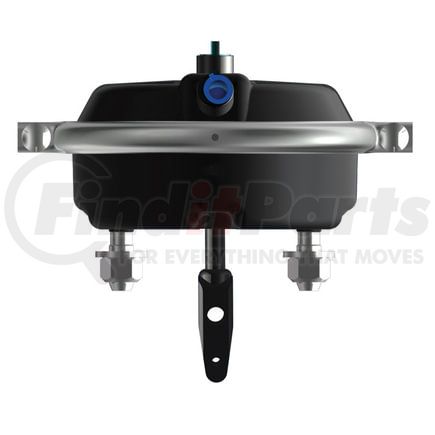

Name: MGM Brakes 1427902 Air Brake Chamber - Model C24L, 2.25" Welded Yoke, Neoprene Diaphragm
SKU: 1427902
Price: 114.49 USD
Availability: InStock

MGM BRAKES part description

Specifications

Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.570
Neoprene Diaphragm
Port Size: 3/8-18 NPTF
Welded Yoke
Stroke (in.): 2.50

Service Size: 24
Spring Size: N/A

Features & Benefits

Formed Steel Pressure Cap -Epoxy-Coated
Formed Steel Non-Pressure Chamber -Epoxy-Coated
Heavy-Duty Nylon Reinforced Diaphragms
Top and Side Air Ports- 3/8" NPTF
Center Hole Shield (Except type 12 and type 16)

Model: C24L

Technical Data

Stroke	2.50" (63.5 mm)
Weight lb (kg)	9.00 lb (4.1 kg)
A	4.42" (112.3 mm)
B	3.67" (93.2 mm)
C	7.34" (186.4 mm)
D	4.75" (120.7 mm)
E	5/8" - 11 UNC
Inlets	3/8" - 18 NPTF
Y	2.25"

Replacement Parts

1	Kit -NP Chamber (b)	9015907
2	Kit -Nuts & Bolts	9003001
3	Clamp Band Assembly	8216025
4	Diaphragm	8017224
5	Kit -Push-Rod Assembly (b) SAE w/ Welded Yoke	9075003
6	Return Spring	8068002
7	Kit -Center Hold Shield	9065002
8	NP Chamber Assembly (b)	8215853
9	Kit -Nuts &Washers SAE	9002001
10	Hex Nut -Yoke SAE	N/A
11	Pressure Cap (2-inlet/steel)	8210002
*NOTE:	(a)Type 12 pressure cap is cast aluminum
*NOTE:	(b)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units.
