NGK SPARK PLUGS part description

SPARK PLUG

Product Description

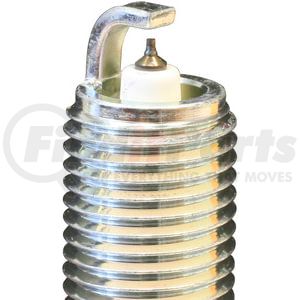

NGK Laser Iridium Spark Plug

Features & Benefits

  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs

Product Attributes

Part Number IJR7A9
Stock Number 7901
Resistance 5000 82
Ground Electrode Tip Design Standard
Ground Configuration Standard
Ground Electrode Core Material Nickel
Electrical Terminal Type Stud
Center Electrode Core Material Copper
Center Electrode Tip Material Iridium
Pre-Gap Size .036 IN
Ground Electrode Quantity 1
Hex Size 18 MM
Insulator Height 50.00 MM
Manufacturer Heat Range 7
Seat Type Flat
Reach .75 IN
Thread Diameter 12.00 MM

Additional Information

Harmonized Tariff Code (HTS) 8511100000
Warranty Time UOM MO
Warranty Time 2
Country of Origin (Primary) JP
UPC 00087295179017
VMRS Code 033003005
UNSPSC 26101732

Part Interchanges

Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
