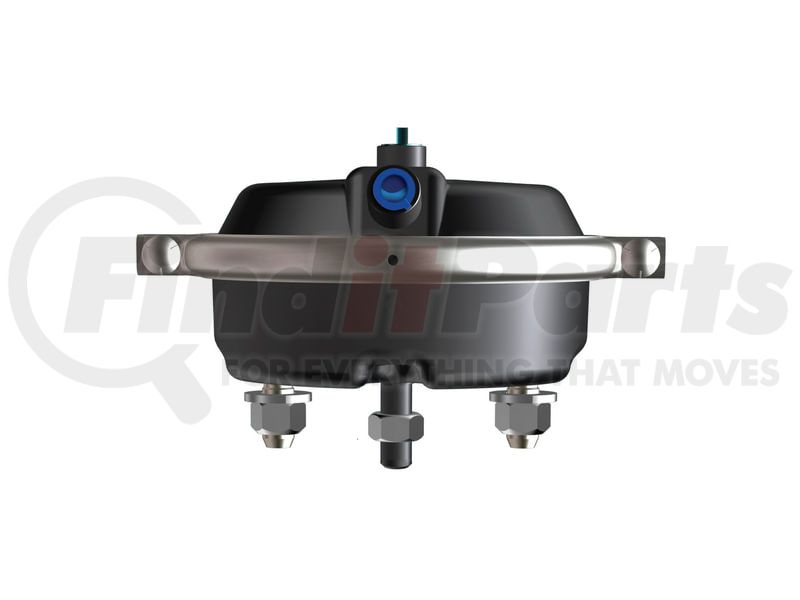

MGM Brakes 1427801 - Air Brake Chamber - 1427 Series, 2.50" Stroke, Model C24L, w/ Neoprene Diaphragm
- Part Number
- 1427801
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - 1427 Series, 2.50" Stroke, Model C24L, w/ Neoprene Diaphragm
details
$10399
MSRP: $183.03
Save: $79.04
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.570
Neoprene Diaphragm
Port Size: 3/8-18 NPTF
Stroke (in.): 2.50
Service Size: 24
Spring Size: N/A
Features & Benefits
- Formed Steel Pressure Cap -Epoxy-Coated
- Formed Steel Non-Pressure Chamber -Epoxy-Coated
- Heavy-Duty Nylon Reinforced Diaphragms
- Top and Side Air Ports- 3/8" NPTF
- Center Hole Shield (Except type 12 and type 16)
Technical Data
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) | 9.00 lb (4.1 kg) |
| A | 4.42" (112.3 mm) |
| B | 3.67" (93.2 mm) |
| C | 7.34" (186.4 mm) |
| D | 4.75" (120.7 mm) |
| E | 5/8" - 11 UNC |
| F | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Replacement Parts
| 1 | Kit -NP Chamber (b) | 9015117 |
| 2 | Kit -Nuts & BOlts | 9003001 |
| 3 | Clamp Band Assembly | 8216025 |
| 4 | Diaphragm | 8017224 |
| 5 | Kit -Push-Rod Assembly (b) SAE | 9064002 |
| 5a | Kit -Push-Rod Assembly (b) METRIC | 9064016 |
| 6 | Return Spring | 8068002 |
| 7 | Kit -Center Hold Shield | 9065002 |
| 8 | NP Chamber Assembly (b) | 8215105 |
| 9 | Kit -Nuts &Washers SAE | 9002001 |
| 9a | Kit -Nuts & Washers MERTIC | 9002002 |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 10a | Hex Nut -Yoke METRIC | 8130016 |
| 11 | Pressure Cap (2-inlet/steel) | 8210002 |
| *NOTE: | (a)Type 12 pressure cap is cast aluminum | |
| *NOTE: | (b)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
