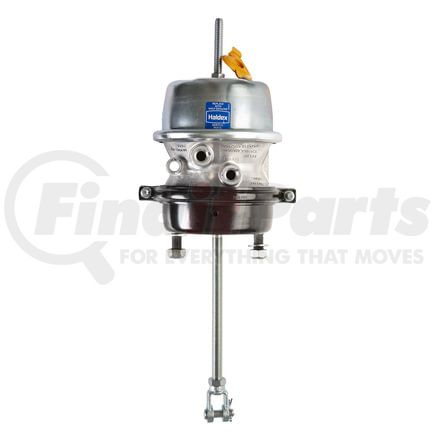

Name: Haldex GC2424 GoldSeal Double Diaphgram Spring Brake - 2424 (Service Chamber Size), 2.25 in. Stroke Length, Standard Stroke
SKU: gc2424
Price: 146.98 USD
Availability: InStock

HALDEX part description

Product Description

Brake Chamber GoldSeal 2424

Application Summary

Combination - Size 2424

Features & Benefits

Uses superior power spring technology for unparalleled force output consistency
Has powder-coated housing that effectively resists fatigue and corrosion
World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
With rugged powder-coated service housing for corrosion protection
Self-piloting dust shield extends air brake system lifespan
Comes in a variety of sizes to fit all drum brake applications

Haldex GoldSeal Air Brake Spring Brake

Equip your vehicle with a high-quality Haldex GoldSeal air brake spring brake. This product is the only truly sealed double diaphragm spring brake specifically designed for heavy duty applications.

Product Attributes

Air Port Position	90°
Air Port Thread Diameter	3/8-18 NPTF
Bracket to End of Spring Housing Length	8.8 in.
Finish	Powder Coated
Freight Class	70
Grade	5
Housing Material	9 Gauge Steel
Maximum Pressure	150 PSI
Piggyback Length	6.5 in.
Push Rod Diameter	5/8-18 UNF
Push Rod Length	9.65 in.
Series	GoldSeal
Service Chamber Size	24/24
Service Clampband Position	0°
Service Clampband Size	9.6 in.
Spring Housing Flange Size	7.5 in.
Stroke Length	2.25 in.
Stroke Type	Standard
Stud Distance	4.75 in.
Stud Length	1.5 in.
Stud Type	5/8-11 UNC

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8412310080
Harmonized Tariff Code (HTS)	8412310080
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653297927
VMRS Code	013004027

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX GC2424 Cross Reference

We have 3 alternatives for the GC2424 by HALDEX:
