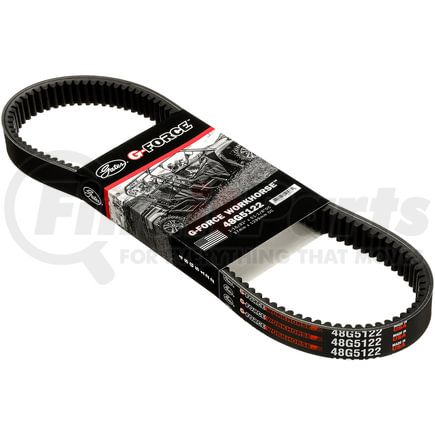

Gates 48G5122 - G-Force Continuously Variable Transmission (CVT) Belt
$10649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
G-Force Continuously Variable Transmission (CVT) Belt
Application Summary
2005-1995 Argo, Conquest 8x8, 620cc, Drive
Features & Benefits
- Flexible, high-performance materials enable grab-and-go mobility and responsive acceleration
- Improved durability, crack & wear-resistance provides up to 2x the life of the original G-Force Belt
- Improved durability, crack & wear-resistance provides up to 2x the life of the original G-Force Belt
- Double- or single-cog designs to match the OEM belt with advanced trapezoid top notch and rounded cog design to maximize heat dissipation and flexibility
- Proprietary Ethylene Elastomer (EE) compound creates improved axial stiffness and increased heat tolerance for higher loads, higher peak torque, less heat fade, and less speed loss
- Proprietary Ethylene Elastomer (EE) compound creates improved axial stiffness and increased heat tolerance for higher loads, higher peak torque, less heat fade, and less speed loss
- Advanced aramid tensile cords and reinforced fiber-loaded undercord for durability and dependability
- High tensile aramid cord maximizes acceleration, shock load resistance, and extreme fatigue resistance; great for hauling heavy loads across aggressive terrain
- High tensile aramid cord maximizes acceleration, shock load resistance, and extreme fatigue resistance; great for hauling heavy loads across aggressive terrain
- Viability testing matches OE belt shift curves and pulley speed ratios for excellent performance at a reduced cost
- Not for use in turbocharged or heavily modified engine applications
- Not for use in turbocharged or heavily modified engine applications
- Tested under extreme conditions in controlled environments as well as on race vehicles
Product Attributes
| Type | Power Sport CVT Belt |
| Cross Section Designation | RVS-R |
| Angle | 30 |
| Top Width | 1.469 in |
| Outside Circumference | 51.125 in |
| Construction | Notched |
| 9837 | Yes |
| Belt Material | Ethylene Elastomer |
| Cord Material | Aramid |
| Bottom Material | No |
| Color | Black |
| Grade Type | OE Performance |
| Top Width | 37 mm |
| Outside Circumference | 1299 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00770075525332 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
Fits Vehicles
- Argo Response 8x8 (2007)
- Argo Vanguard 2 6x6 (2006-2007)
- Argo Conquest 6x6 (2006)
- Argo Conquest 8x8 (2006)
- Argo Bigfoot 6x6 (2006)
- Argo Vanguard 6x6 (2006-2007)
