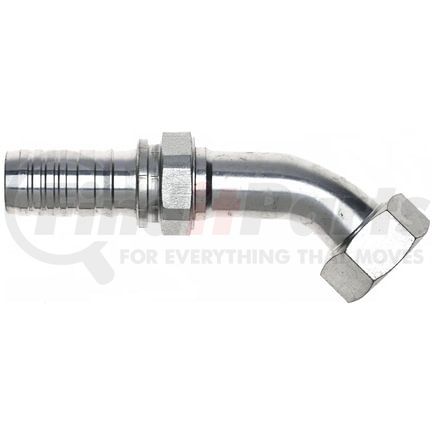

(888) 312-8812 Login SignupGATES G22235-2424 Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral Plus)
Tap to view 2 more
$25349
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Jan 14
GATES G22235-2424 Part Description
Manufacturer
Product Description
Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G22235-2424 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Plus Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 24GSP-24FFORX45-036 |
| Thread Size | 2-12 |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Nut Hex Size | 2.25 MM |
| Drop Length | 2.7 IN |
| Cut-Off Length | 5.23 IN |
| Length | 7.61 IN |
| Inside Diameter | 38.1 MM |
| Drop Length | 68.6 MM |
| Cut-Off Length | 132.8 MM |
| Length | 193.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075424550 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G22235-2424 Part Interchanges
| Brand | Part Number |
|---|---|
| Parker | 1J743-24-24 |
| Dayco | 101389 |
| Weatherhead | 43024UL84 |
| Goodyear | 28710-2424 |
| NAPA | G22235-2424 |
