(888) 312-8812 Login SignupGATES G25680-0817X Female French GAZ Swivel (MegaCrimp)
Tap to view 3 more
$6849
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Jan 20
GATES G25680-0817X Part Description
Manufacturer
Product Description

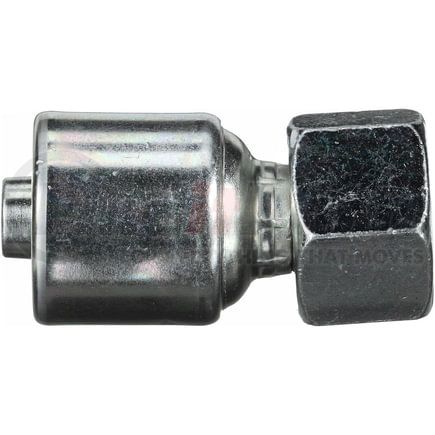

Female French GAZ Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25680-0817X Specifications
Product Attributes
| Coupling Description | MegaCrimp Female French GAZ Swivel |
| Industrial Description | 8G-17FFGX XBULK |
| Thread Size | M24X1.5 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 30 MM |
| Cut-Off Length | 1.02 IN |
| Length | 2.5 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 24 |
| Gender | Female |
| Swivel | Yes |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 25.9 MM |
| Length | 63.4 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| UPC | 00770075452911 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
