Name: Haldex AQ964110 PLC Select 1M Electronic Control Unit (ECU) Upgrade Kit - DIN Connector, SLH-A7 Software, Upgrade Replacement for AL40953, AL919302 and AL919310
SKU: aq964110
Price: 468.99 USD
Availability: InStock

HALDEX part description

Product Description

2S/1M A7 ECU Upgrade Kit, Tandem & Multiple Applications

Application Summary

Pre-March 1998 Modal Systems do not include interchange with Post-March 1998 Systems. Contact Haldex for instructions, if you wish to upgrade Pre-March 1998 Systems. Most ABS maintenance involves Wheel-end Sensors. Haldex recommends that Wheel-end Sensors be replaced when replacing or upgrading the ABS system. Upgrade Replacement for AL40953, AL919302 and AL919310,Tandem and Multi OEM part number is located on top of ECU.

Features & Benefits

With PLC select 2M ECU design
Use together with the wheel-end sensors when upgrading or replacement the ABS system
Can be used as an upgrade replacement for AL40953, AL919302, and AL919310
All components are made using high-quality materials for superior durability

Haldex ECU Upgrade Kit

For a hassle-free ABS maintenance, make sure you always have a Haldex ECU upgrade kit on hand. Made by a brand with over 100 years of engineering expertise, this 2S/1M A7 kit for tandem and multiple applications is designed to help professional technicians and mechanics to complete their ABS maintenance and repair tasks easier and faster.

Product Attributes

Connector Type	DIN
Height	4.25 in.

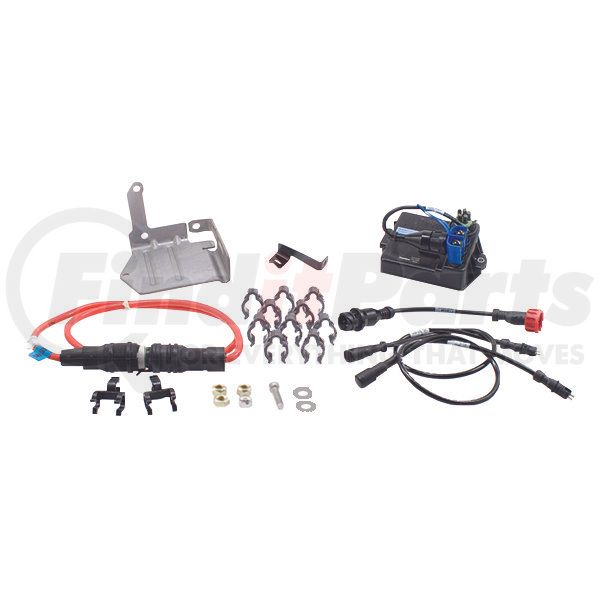

Kit Content	1.0m Power Cord Extension, 0.5m Sensor Extensions, PLC Select ECU, and Bracket
Recommended Use	Upgrade Replacement for AL40953, AL919302 and AL919310
Series	PLC Select 1M
Software	SLH-A7
Voltage	12V
Width	5.5 in.

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8543709960
Harmonized Tariff Code (HTS)	8543709960
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653304991
VMRS Code	013011076

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX AQ964110 Cross Reference

We have 4 alternatives for the AQ964110 by HALDEX:
