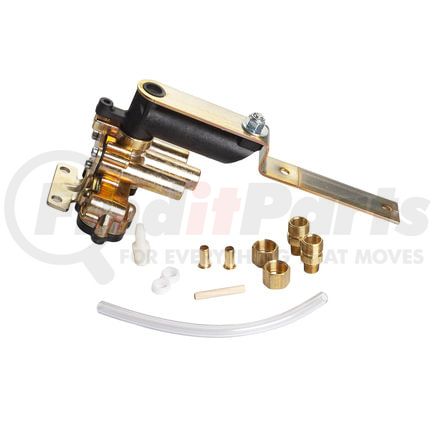

Haldex 90554183 - Height Control Valve - Controlled Response (CR) Type, 1/8" NPT Port
$12749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HALDEX part description
Product Description
Height Control Valve - Controlled Response (CR) Type, 1/8" NPT Port
Features & Benefits
- Automatically adjusts air pressure to maintain consistent ride height
- Uses a Type CR design with ⅛” NPT ports for controlled air regulation
- Helps reduce wear on suspension components by preventing excessive movement
- Improves vehicle performance by keeping the chassis level under different load conditions
- Contributes to a more comfortable ride, especially in commercial applications
- Includes ⅜” fittings for a secure and hassle-free connection
Haldex Height Control Valve
A suspension system that adapts to changing loads is key to a safer ride. The Haldex Height Control Valve helps maintain proper ride height by adjusting air pressure automatically. This Type CR valve, with ⅛” NPT ports, is designed to regulate air to the suspension, compensating for weight shifts without the need for manual adjustments. Moreover, the Haldex 90554183 minimizes stress on the suspension, reduces uneven tire wear, and helps improve vehicle handling under varying loads.
Product Attributes
| Port Quantity | 3 |
| Air Port Thread Diameter | 1/8 in. NPT |
| Dump Valve Included | No |
| Exhaust Port Diameter | 1/8 in. NPT |
| Fitting Size | 3/8 in. |
| Freight Class | 70 |
| Series | Controlled Response (CR) |
| Supply Port Diameter | 1/8 in. NPT |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653252544 |
| VMRS Code | 016008023 |
Part Interchanges
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
HALDEX 90554183 Cross Reference
We have 2 alternatives for the 90554183 by HALDEX:
