GROTE part description

Product Description

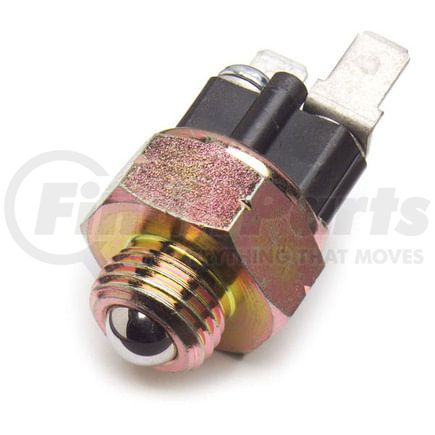

Switch, Ball, With Blade Terminal

Features & Benefits

  • 500,000 electrical life cycles
  • 7/8" hex nut
  • 9/16"-18 thread
  • Leak-proof
  • North American
  • Replaces: Kenworth K30133
  • Mack IMR2297
  • Freightliner 06-10525

Product Attributes

Color Black
Prop 65 Label Required N
Stud or Tab Size (2) .250" Blade terminals
Style Ball
Amperage 0-5Amp operating current,5-24V DC
Type Normally Closed
Operating temperature -40 degree C (-40 degree F) to 121 degree C (250 degree F)
High/low Voltage Limits 0-5A @ 5-24V DC

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8536500000

GROTE 820458 Cross Reference

We have 1 alternatives for the 820458 by GROTE:
