GATES part description

Product Description

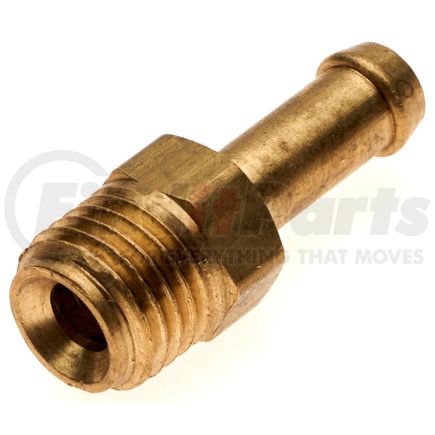

Male SAE Inverted Flare (Single Bead)

Features & Benefits

  • Use with low pressure hose such as multi-purpose or general purpose hose
  • Single bead fittings are quick connecting, field attachable and reusable
  • Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)

Product Attributes

Coupling Description Single Bead Male SAE Inverted Flare
Industrial Description 5SB-5RMIX
Thread Size 1/2-20
Inside Diameter .3125 IN
Length 1.58 IN
Maximum Working Pressure 60 PS
Temperature Rating -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Material 360 Brass
Inside Diameter 7.9 MM
Length 40.1 MM

Additional Information

Harmonized Tariff Code (Schedule B) 7412200065
Country of Origin (Primary) US
UPC 00029769144589
VMRS Code 059032012
UNSPSC 31163000

Part Interchanges

GATES G37500-0505 Cross Reference

We have 1 alternatives for the G37500-0505 by GATES:
