GATES part description

Product Description

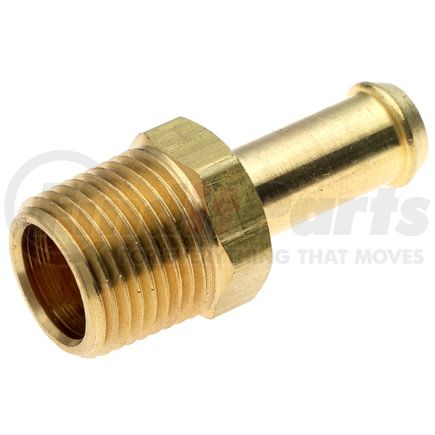

Male Pipe with Cone Seat (Single Bead)

Features & Benefits

  • Use with low pressure hose such as multi-purpose or general purpose hose
  • Single bead fittings are quick connecting, field attachable and reusable
  • Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)

Product Attributes

Coupling Description Single Bead Male Pipe w/ Cone Seat
Industrial Description 4SB-4RMP
Thread Size 1/4-18
Inside Diameter .25 IN
Length 1.63 IN
Maximum Working Pressure 60 PS
Temperature Rating -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Material 360 Brass
Inside Diameter 6.4 MM
Length 41.4 MM

Additional Information

Harmonized Tariff Code (Schedule B) 7412200065
Country of Origin (Primary) US
UPC 00029769144527
VMRS Code 059032012
UNSPSC 31163000
