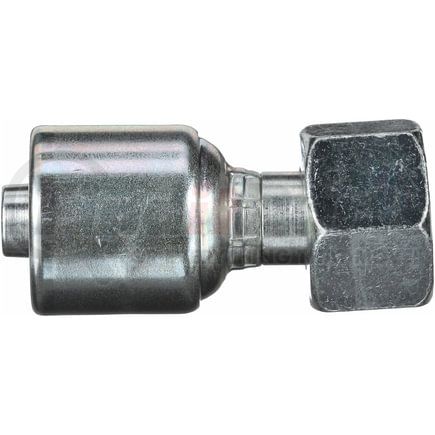

(888) 312-8812 Login SignupGATES G25720-1020 Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
Tap to view 3 more
SHIPS MONDAY
$6499
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
GATES G25720-1020 Part Description
Manufacturer
Product Description
Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25720-1020 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring |
| Industrial Description | 10G-20FDHORX |
| Thread Size | M30X2.0 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Outside Diameter | 20 MM |
| Nut Hex Size | 36 MM |
| Cut-Off Length | 1.4 IN |
| Length | 2.67 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Heavy |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 35.5 MM |
| Length | 67.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00072053206166 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25720-1020 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1A16DS10, 1B16DS10 |
| Parker | 1C643-20-10, 1C943-20-10 |
| Dayco | 116170 |
| Weatherhead | 10M70E, 10U70C, 10Z70C |
| Caterpillar | 116-0443 |
| Goodyear | 14210-1030, B2-DHFX-1030 |
| NAPA | G25720-1020 |
| Kurt Hydraulics | F-DINHX-10-30, M-DINHX-10-30 |
