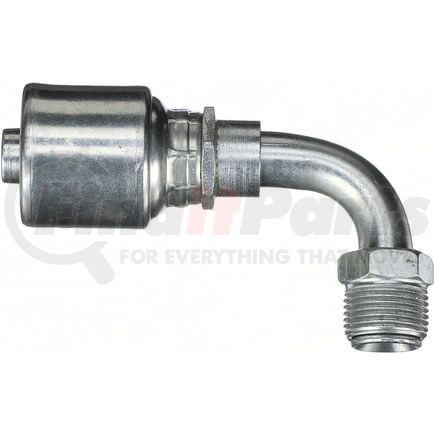

GATES G25504-0405 SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)

Name: Gates G25504-0405 SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)
SKU: g255040405
Price: 29.99 USD
Availability: InStock

Tap to view 3 more

MSRP: $32.65

$29.99

Save $2.66

Limited availability at this price!

In Stock

Get it by Monday, Jan 12

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

Orders placed over the weekend will ship the following business day

GATES G25504-0405 Part Description

SAE Male Inverted Swivel - 90 Bent Tube (MegaCrimp)

Robust "bite-the-wire" crimp
Robust “bite-the-wire” crimp
Tested to an industry-leading 1 million impulse cycles
Simplifies inventory management
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard

Coupling Description	MegaCrimp SAE Male Inverted Swivel - 90 Bent Tube
Industrial Description	4G-5MIX90
Thread Size	1/2-20
Inside Diameter	.25 IN
Hydraulic Hose Recommendation	Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Nut Hex Size	.5 IN
Drop Length	1.38 IN
Cut-Off Length	1.44 IN
Length	2.46 IN
Seal Type	Mated Angle
Nose Seat Type	Inverted
Mating Angle	45
Gender	Male
Bent Tube Angle	90
Swivel	Yes
Inside Diameter	6.4 MM
Drop Length	35.1 MM
Cut-Off Length	36.5 MM
Length	62.5 MM

Harmonized Tariff Code (Schedule B)	8412909015
Country of Origin (Primary)	US
UPC	00072053109351
VMRS Code	059032012
UNSPSC	31163000
