GATES G25241-1616 Part Description
Manufacturer
Product Description

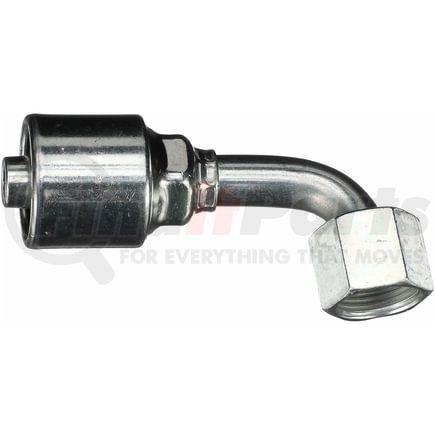

Female Flat-Face O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25241-1616 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 16G-16FFORX90L |
| Thread Size | 1 7/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 41 MM |
| Drop Length | 4.49 IN |
| Cut-Off Length | 2.88 IN |
| Length | 5.11 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 25.4 MM |
| Drop Length | 114 MM |
| Cut-Off Length | 73.1 MM |
| Length | 129.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053206869 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25241-1616 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA16FRC16 |
| Parker | 1J143-16-16, 1J1HY-16-16 |
| Dayco | 108993 |
| Weatherhead | 16UA76, 16ZA76 |
| Goodyear | 14720-1616, B2-OFFX90L-1616, UC-OFFX90L-1616 |
| NAPA | G25241-1616 |
| Kurt Hydraulics | FFX90L-16-16 |
