GATES G25235-0404 Part Description
Manufacturer
Product Description

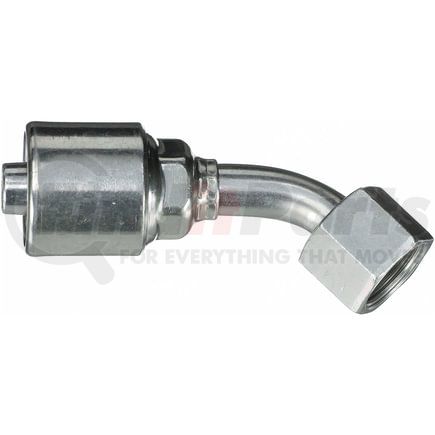

Female Flat-Face O-Ring Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25235-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 4G-4FFORX45S |
| Thread Size | 9/16-18 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 17 MM |
| Drop Length | .39 IN |
| Cut-Off Length | 1.54 IN |
| Length | 2.57 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 6.4 MM |
| Drop Length | 10 MM |
| Cut-Off Length | 39.2 MM |
| Length | 65.2 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053323658 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25235-0404 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA4FRA4, 1GA4FRA4, FJ9892-0404S |
| Caterpillar | 124-2128 |
| Dayco | 101359, 108740, 151740, HY04-04OF45T |
| Eaton | 04Z-L64, 4TA4FRA4 |
| Goodyear | 13710-0404, 14710-0404, B2-OFFX45-0404, T8-OFFX45-0404, UC-OFFX45-0404 |
| Kurt Hydraulics | FFX45-04-04 |
| N/A | 04032274, KFFX450404, E04-04FF45, C12222441-0404M, 204-1JFSX-L64, M22441-04-04KR, M22443-04-04 |
| NAPA | G25235-0404 |
| Parker | 1J743-04-04, 1J743-4-4, 1J7HY-4-4, 1J7HY-4-4-SM |
| Weatherhead | 04EEL64, 04EL64, 04UL64, 04ZL64, 04E-L64, 04U-L64 |
