GATES G25225-0404 Part Description
Manufacturer
Product Description

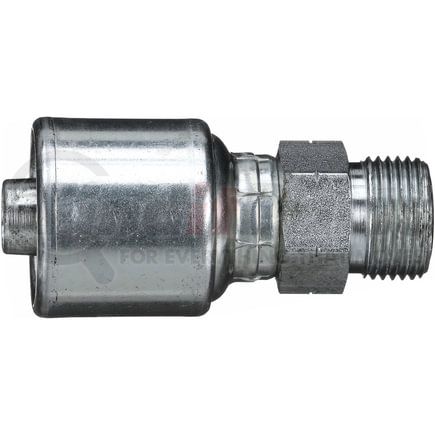

Male Flat-Face O-Ring (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25225-0404 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Flat-Face O-Ring |
| Industrial Description | 4G-4MFFOR |
| Thread Size | 9/16-18 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 17 MM |
| Cut-Off Length | 1.04 IN |
| Length | 2.07 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Bulkhead | No |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 26.5 MM |
| Length | 52.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053173543 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25225-0404 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA4MR4 |
| Dayco | 101583, 108099, HY04-04OM |
| Eaton | 04Z-E64 |
| Goodyear | 13730-0404, 14730-0404, B2-OFM-0404, T7-OFM-0404, UC-OFM-0404 |
| Kurt Hydraulics | MF-04-04 |
| N/A | T2840-0409, 04032200, KMF0404, E04-04MF, C12212410-0404, 204-1JFS-04, M12410-04-04 |
| NAPA | G25225-0404 |
| Parker | 1J043-04-04, 1J043-4-4, 1J0HY-4-4, 1JM43-04-04 |
| Weatherhead | 04UE64, 04UEE64, 04ZE64, 04U-E64, 04W-E64 |
