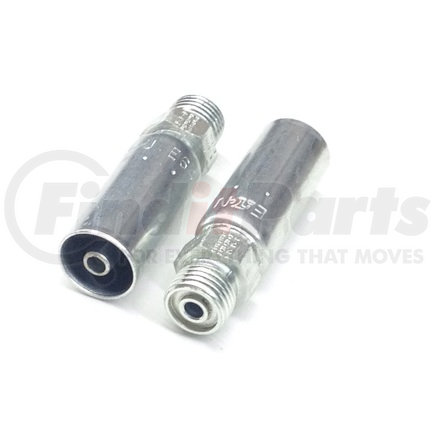

Name: Weatherhead 04U-E64 Fitting - Fitting (Permanent) R1/R2AT Straight Male ORS
SKU: 04ue64
Price: 30.49 USD
Availability: InStock

WEATHERHEAD part description

Product Specifications

End Size	4
End Type	ORS
Hose Family	DIN 1S/SAE R1
Hose Size	4
Material	Carbon Steel
Product Line	Weatherhead
Shape	Straight
Style	Permanent
A	2.34
Application	General purpose low, medium, and high pressure hydraulic.
Description	FOR-SEAL Male Rigid
Family	Coll-O-Crimp
Hex "E"	0.62
Hole Dia	0.16
Hose Cut-Off Factor "D"	0.86
Hose ID	0.25
O-Ring	4629x4
Plating	Zinc; yellow dichromate finish
Product Type	Fitting
Series	U? Series
Thread Size	43359
Tube Size (Inch)	0.25

WEATHERHEAD 04U-E64 Cross Reference

We have 1 alternatives for the 04U-E64 by WEATHERHEAD:

WH04UE64

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
