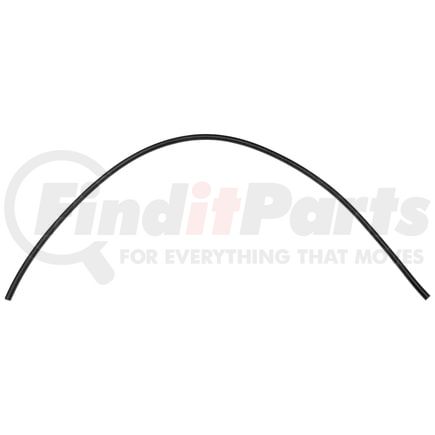

(888) 312-8812 Login SignupGATES 85945 RLA 1-Fiber Braid Return Line & Low Pressure Hose
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 85945 Part Description
Manufacturer
Product Description

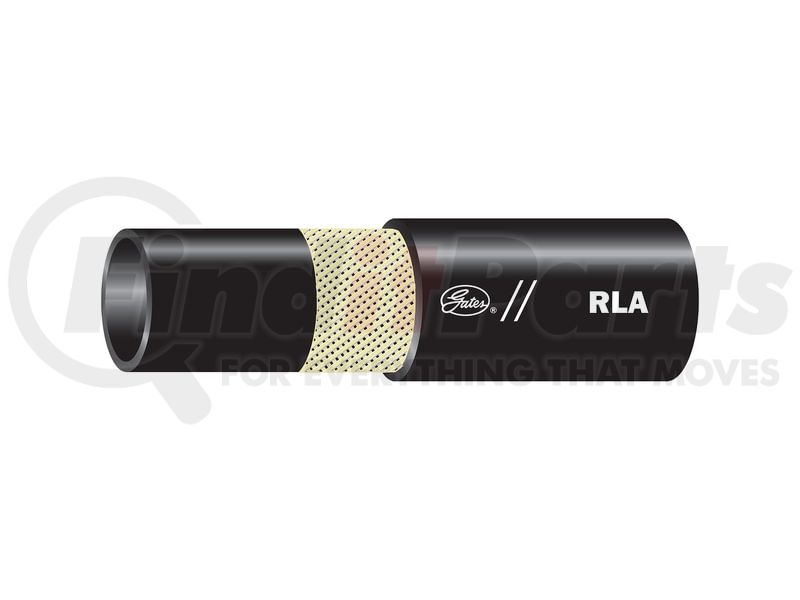

RLA 1-Fiber Braid Return Line & Low Pressure Hose
Features & Benefits
- For use with GLX Couplings [G44 Series], MegaCrimp Couplings [G25 Series] and Power Crimp Couplings (-3 Only)
- Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to 125 Deg. F biodiesel fuel transfer applications
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C); Air: +160 Deg. F (+ 71 Deg. C)
GATES 85945 Specifications
Product Attributes
| Product Type | RLA 1-Fiber Braid Return Line & Low Pressure Hose |
| Industrial Description | 10RLAX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 200 PS |
| Burst Pressure | 800 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F, to +160 Deg. F (Air) |
| Length | 25 FT |
| Dash Size | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .94 IN |
| Bend Radius | 6 IN |
| Vacuum Rating | 15 INHG |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Fiber Braid |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | GLP, MegaCrimp |
| SAE Standard | 30R2 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053682465 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 85945 Part Interchanges
| Brand | Part Number |
|---|---|
| Dayco | 011710, 11710 |
| Weatherhead | H33210 |
| NAPA | 85945 |
