GATES 70612 Part Description
Manufacturer
Product Description

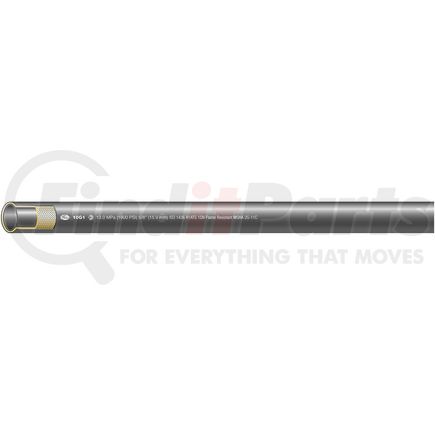

Global G1 1-Wire Braid Hose - SAE 100R1 Type S
Features & Benefits
- Use with Field Attachable Type T [G27 Series], GlobalSpiral [G20 Series], GlobalSpiral Plus [G22 Series], MegaCrimp [G25 Series], Power Crimp or Stainless Steel Braid Couplings [G17 Series]
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70612 Specifications
Product Attributes
| Product Type | Global G1 1-Wire Braid Hose - SAE 100R1 Type AT |
| Industrial Description | 10G1XREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1900 PS |
| Burst Pressure | 7600 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 220 FT |
| Dash Size | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .93 IN |
| Bend Radius | 8 |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| SAE Standard | 100R1 |
| EN Standard | 853 1SN |
| ISO Standard | 1436 1SN R1 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053227956 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70612 Part Interchanges
| Brand | Part Number |
|---|---|
| Aeroquip | 2681-10 |
| Parker | 421-10, AX10 |
| Dayco | 012710, 12710 |
| Weatherhead | H10410, H10410250R, H19010, H19010250R |
| Goodyear | GR1SN-10X250RL, GR1SN-10X50BX, GR1SN10X250, GR1SN10X50 |
| NAPA | 70612 |
