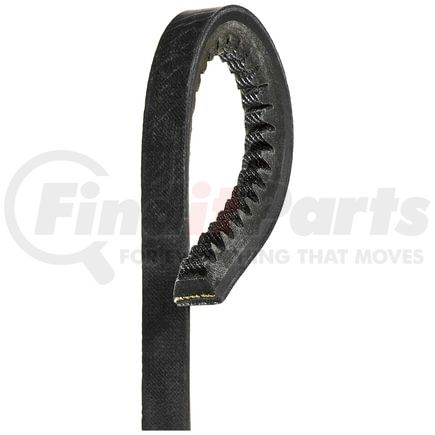

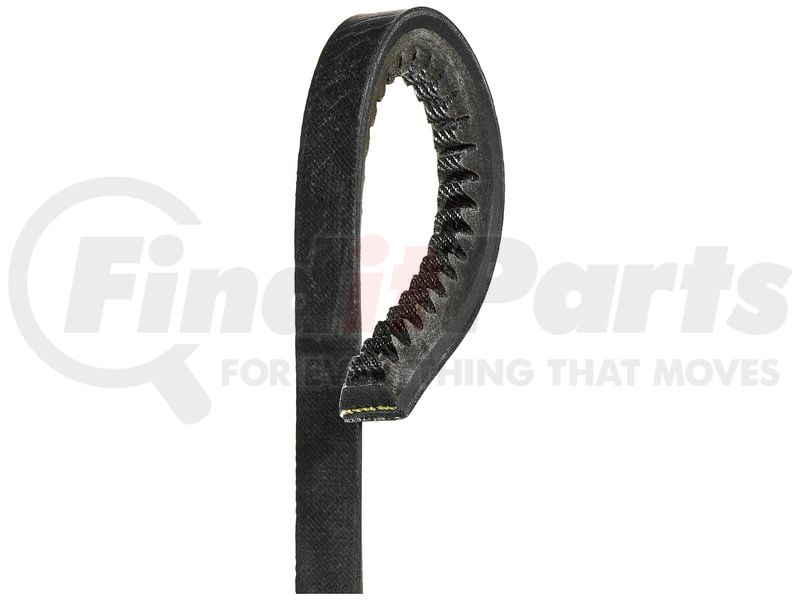

Gates 5VX690 - Super HC Narrow Section Molded Notch V-Belt
$6149
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Super HC Narrow Section Molded Notch V-Belt
Features & Benefits
- Promotes smoother, quieter operation, with less slippage and belt wear for improved belt life reducing expensive maintenance time
- More compact design compared to classical section V-belts and optimally designed for high horsepower, space-constrained applications with small pulley diameter drives
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves for even wear and extended belt life

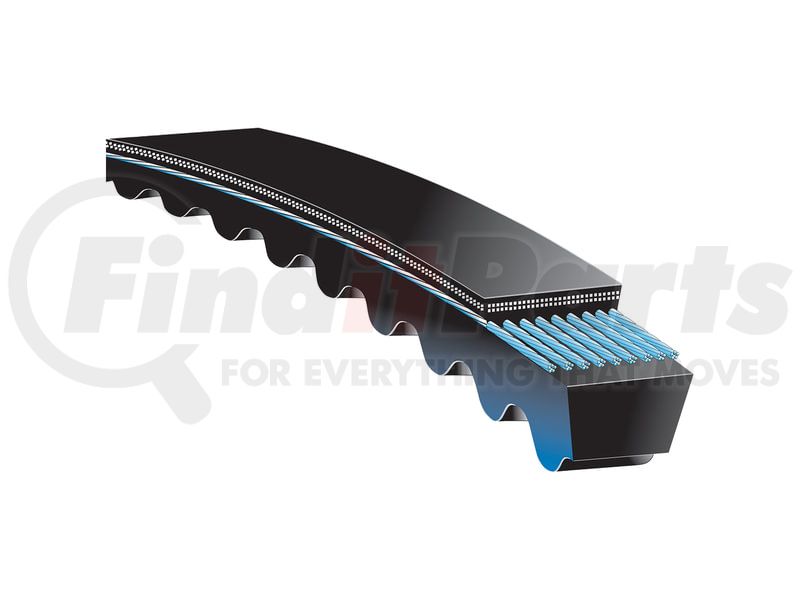

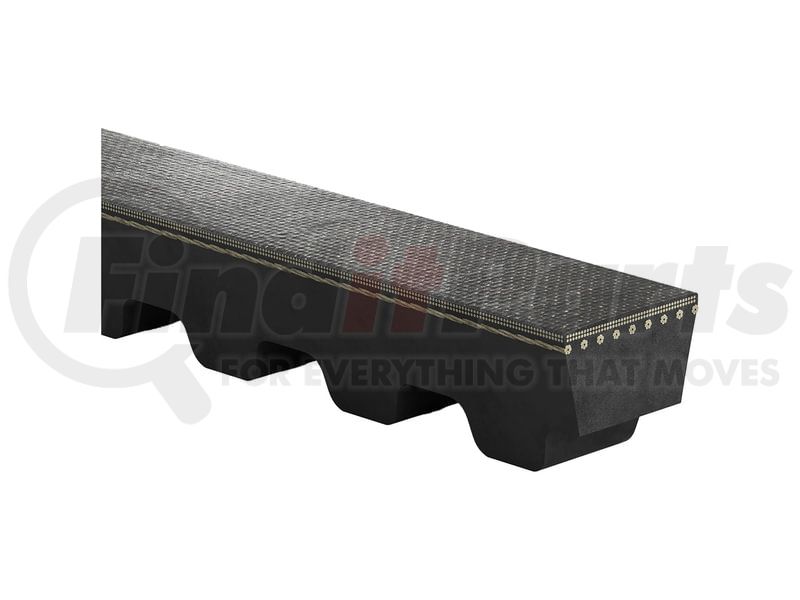

- Molded notches reduce and evenly distribute thermal and bending stresses and reduce noise
- Patented Ethylene Elastomeric compound construction protects belt against heat, ozone and sunlight
- Meets ARPM/RMA IP-3-2 oil and heat resistance standards and ARPM/RMA IP-3-3 static conductivity requirements
- Temperature Range: -70 Deg. F to +250 Deg. F (-57 Deg. C to +121 Deg. C)
- NOTE: Available in 3VX, 5VX, and 8VX cross-sections as well as Super HC Molded Notch PowerBand joined V-belts
Product Attributes
| Type | Narrow Section Molded Notch V-Belt |
| Cross Section Designation | 5VX |
| Strand Quantity | 1 |
| Top Width | .62 in |
| Outside Circumference | 69 in |
| Construction | Notched |
| 9837 | Yes |
| Belt Material | Ethylene Elastomer (EE) |
| Cord Material | Polyester |
| Top Width | 16 mm |
| Outside Circumference | 1753 mm |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| UPC | 00072053520453 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
