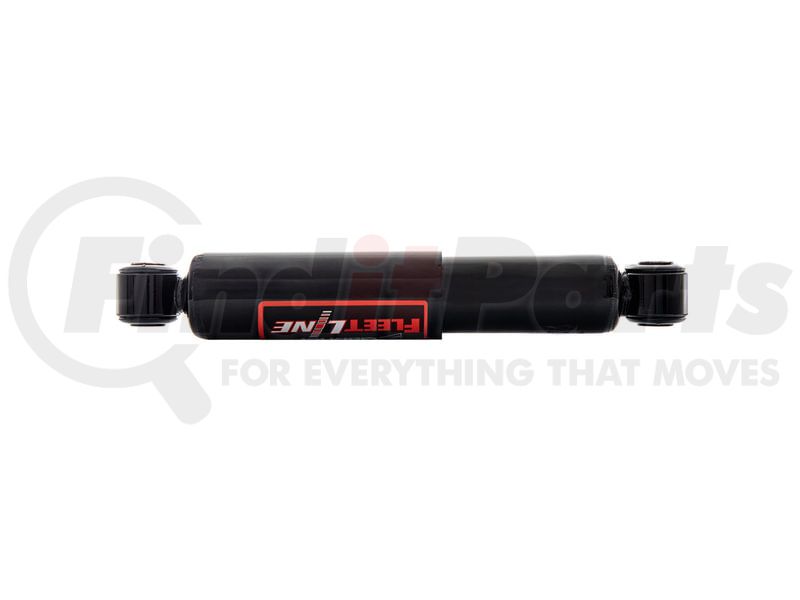

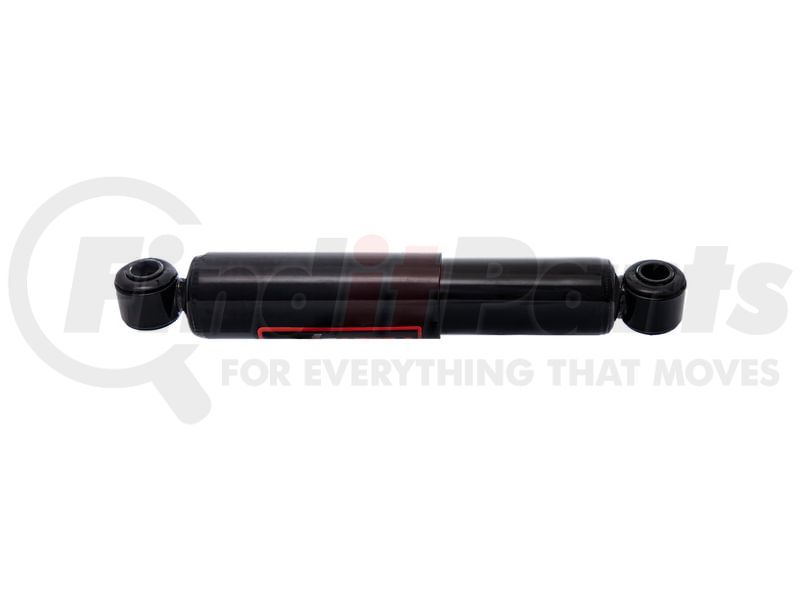

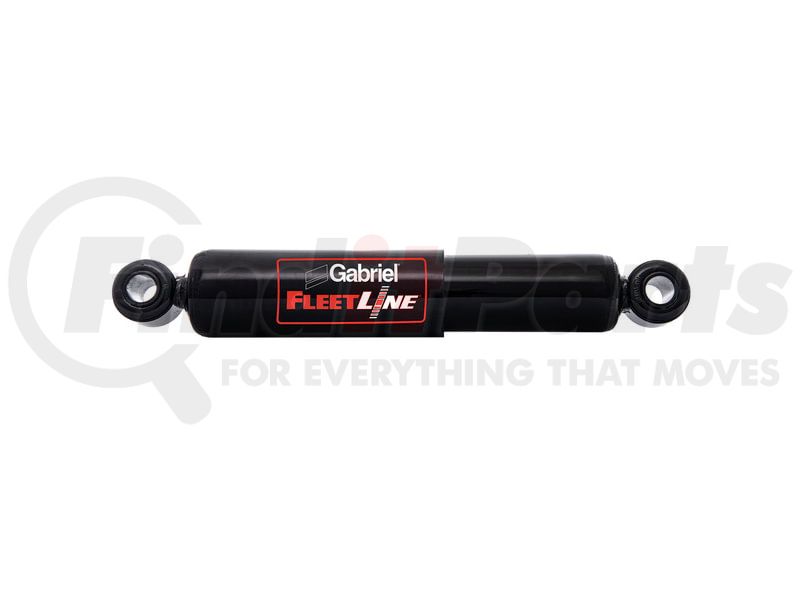

Name: Gabriel 85060 FleetLine Heavy Duty Shock Absorber
SKU: 85060
Price: 62.99 USD
Availability: InStock

GABRIEL part description

Product Description

FleetLine Heavy Duty Shock Absorber

Features & Benefits

Larger 1 5/8” bore supplies improved durability and greater tensile strength for harsher operating conditions
Bulged design provides increased fluid capacity and cooler operation in extreme conditions (85300 & 85700 series)
Solid steel eye rings & 360° arc-welded end mounts deliver tough tensile strength that reduces end mount failures
Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface
Anti-corrosion end mounts to inhibit rust & corrosion
Durable piston seal design
Formulated shock oil for exceptional anti-fade performance

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Product Attributes

Compression	405
External Diameter Illustration	C
Lower Mount Code	ES36
Rebound	943
Recoil Cutoff	YES
Core Color	Y
Strut Mount Design	Upper
Weight (lbs)	6.3
Bore	1-5/8"
Collapsed Length (in)	12.76
Stroke (in)	7.04
Installation Hardware Included	No
Dust Tube	YES
Upper Mount Code	ES36
Extended Length (in)	19.79
HD Mounting Code Guide.pdf	https://gabriel.com/sites/default/files/2024_HD_Mounting_Code_Guide.pdf
Accessory Kit #	n/a
Compression (lb)	405
Rebound (lb)	943
Dust Tube Material	Steel
Package Contents	1 Shock

Additional Information

Harmonized Tariff Code (Schedule B)	8708801600
Country of Origin (Primary)	MX
MSDS Sheet Number	ARP002 / RC001
UPC	00043645923600
VMRS Code	016006001
UNSPSC	25172011
