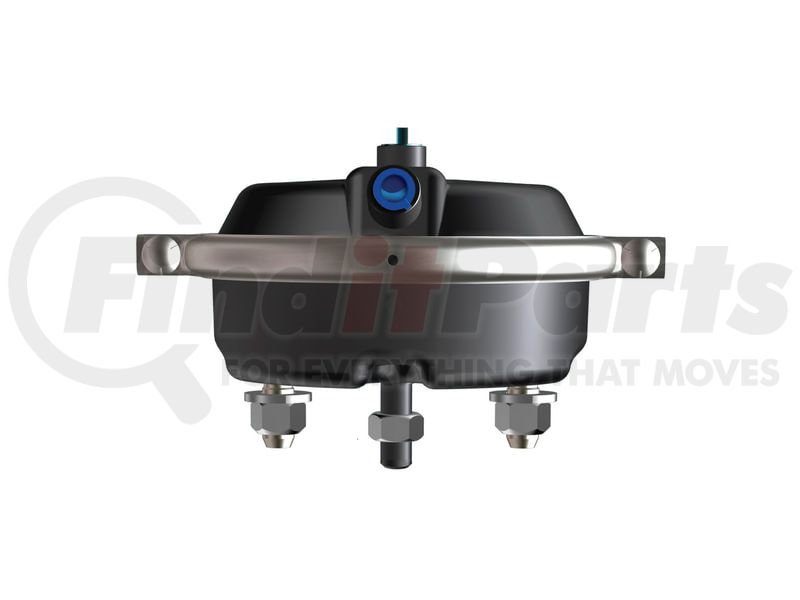

Name: MGM Brakes 1428801 Air Brake Chamber - 1428 Series, 3" Stroke, Model C24L3, w/ Neoprene Diaphragm
SKU: 1428801
Price: 121.49 USD
Availability: InStock

MGM BRAKES part description

Specifications

Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.550
Neoprene Diaphragm
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00

Service Size: 24
Spring Size: N/A

Features & Benefits

Formed Steel Pressure Cap -Epoxy-Coated
Formed Steel Non-Pressure Chamber -Epoxy-Coated
Heavy-Duty Nylon Reinforced Diaphragms
Top and Side Air Ports -3/8" NPTF
Center Hole Shield (except C16L 2.5)

Model: C24L3

Technical Data

Stroke	3.00" (76.2 mm)
Weight lb (kg)	9.72 lb (4.8 kg)
A	5.30" (134.6 mm)
B	4.22" (107.0 mm)
C	7.37" (187.2 mm)
D	4.75" (120.7 mm)
E	5/8" - 11 UNC
F	5/8" - 18 UNF
Inlets	3/8" - 18 NPTF
X - Min. (aftermarket unit only)	8.00" (203.2 mm)

Replacement Parts

1	Kit -NP Chamber (a)	9015200
2	Kit -Nuts & Bolts	9003001
3	Clamp Band Assembly	8216025
4	Diaphragm	8017425
5	Kit -Push-Rod Assembly (a) SAE	9064006
5a	Kit -Push-Rod Assembly (a) METRIC	9064027
6	Return Spring	8068012
7	Kit -Center Hole Shield	9065002
8	NP Chamber Assembly (a)	8215200
9	Kit - Nuts & Washers SAE	9002001
9a	Kit -Nuts & Washers METRIC	9002002
10	Hex Nut -Yoke SAE	8130004
10a	Hex Nut -Yoke METRIC	8130016
11	Pressure Cap (2-inlet/steel	8210026
*NOTE:	(a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units.
