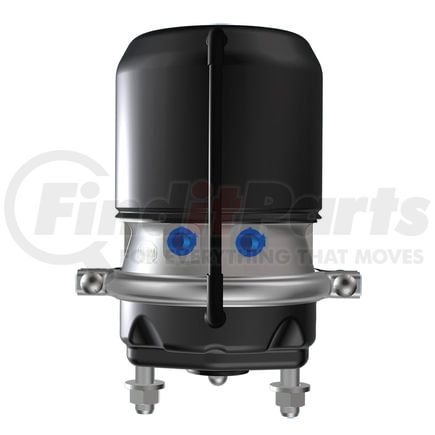

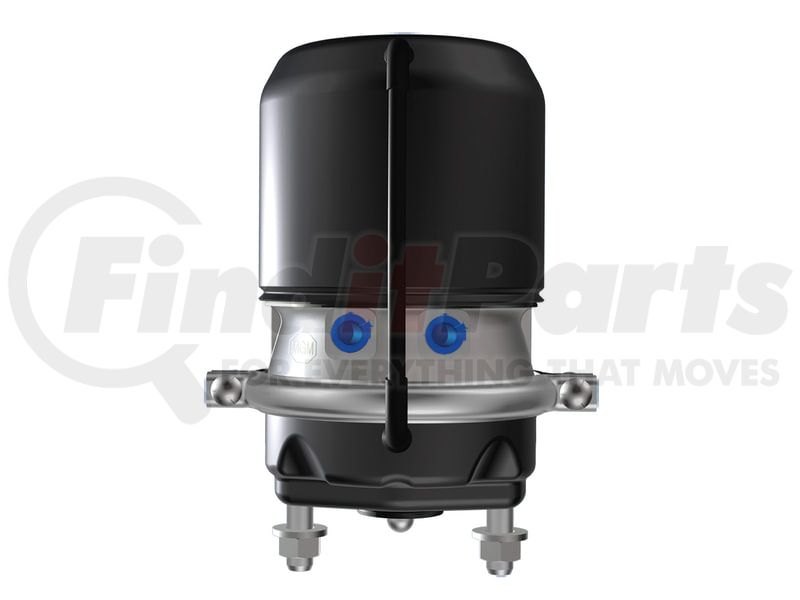

MGM Brakes MJB2424ET757 - Air Brake Chamber - Combination, Air Disc Model
- Part Number
- MJB2424ET757
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, Air Disc Model
details
$43849
2 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper Resistant Design
- Lighter Weight
- 3 Inch (76.2 mm) Long Stroke
- Compact Size
- New Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion (Approx. 1.25 inch (31.8 mm) Protrusion on "Long Stroke" Models When Manually Released)
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel Head, Epoxy Coated
- Available With 1,922-2,450 Lbs. (871.8 kg-1111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 16-30
- Heavy Duty 8 Gauge NPC Standard
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) | 20.40 lb (9.3 kg) |
| A | 10.59" (269.0 mm) |
| B | 6.76" (171.7 mm) |
| C | 7.38" (187.5 mm) |
| D | 4.75" (120.7 mm) |
| E | M16 x 1.5 - 6g |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| XB | 15 mm |
MGM BRAKES MJB2424ET757 Cross Reference
We have 1 alternatives for the MJB2424ET757 by MGM BRAKES:
