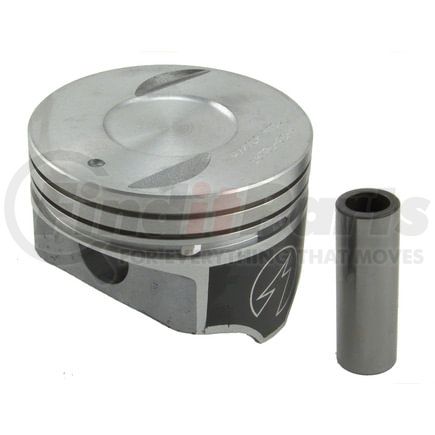

Sealed Power H518CP40 - Sealed Power H518CP 40 Engine Piston Set
- Part Number
- H518CP40
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power H518CP 40 Engine Piston Set
details
$46792
Package Price for 8 Units
@ $58.49 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD(R) skirt-coated piston
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9894 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.2500 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.625 IN |
| Head Illustration | 10 |
| Head Type | Recessed Head .080 deep x 2.100 dia. w/2 valve reliefs; For + .100 use ring set E424K30; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Oversized Amount | 0.040 IN |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 107.95 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 25.131 MM |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046357945 |
Part Interchanges
- H518CP 40
- Badger P550H-040
- Clevite 9H3403.040
- Clevite TC2707.040
- H3403.040
- Ertel 1252P40
- Dana Commercial Vehicle Service Parts 224-2707.040
- Dana Commercial Vehicle Service Parts TC2707.040
- Badger P550H040
- Silvolite H3403040
- Clevite 9H3403040
- Clevite TC2707040
- Dana Commercial Vehicle Service Parts 2242707040
- Dana Commercial Vehicle Service Parts TC2707040
Fits Vehicles
- GMC V3500 (1987-1990)
- GMC R3500 (1987-1990)
- GMC R2500 Suburban (1987-1990)
- GMC R2500 (1987-1989)
- GMC P3500 (1983-1990)
- GMC K3500 (1983-1986, 1988-1990)
- GMC G3500 (1988-1990)
- GMC C3500 (1983-1986, 1988-1990)
- GMC C2500 Suburban (1983-1986)
- GMC C2500 (1983-1986)
- Chevrolet V3500 (1989-1990)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1990)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet Townsman (1970-1972)
- Chevrolet Nova (1970-1971)
- Chevrolet Kingswood (1970-1972)
- Chevrolet Corvette (1970-1974)
- Chevrolet Chevelle (1970-1973)
- Chevrolet Brookwood (1970-1972)
- Chevrolet Biscayne (1970-1972)
- Pontiac Strato-Chief (1970)
- Pontiac Parisienne (1970)
- Pontiac Laurentian (1970)
- Chevrolet Estate (1970)
- Pontiac Acadian (1970-1971)
- Chevrolet R3500 (1989-1990)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1989-1990)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet P30 (1983-1990)
- Chevrolet Monte Carlo (1970-1975)
- Chevrolet Malibu (1973-1975)
- Chevrolet Laguna (1973-1975)
- Chevrolet K3500 (1988-1990)
- Chevrolet K30 (1983-1986)
- Chevrolet K20 Suburban (1985)
- Chevrolet Impala (1970-1976)
- Chevrolet G30 (1988-1990)
- Chevrolet Caprice (1970-1976)
- Chevrolet C3500 (1988-1990)
- Chevrolet C30 (1983-1986)
- Chevrolet C20 Suburban (1983-1986)
- Chevrolet C20 (1983-1986)
- Chevrolet C1500 (1990)
- Chevrolet Bel Air (1970-1975)
