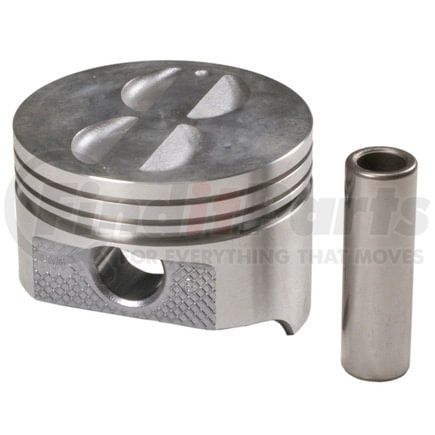

Sealed Power 534NP - Sealed Power 534NP Engine Piston Set
- Part Number
- 534NP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 534NP Engine Piston Set
details
$28792
Package Price for 8 Units
@ $35.99 per unit
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9275 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.7360 IN |
| Piston Material | Cast Aluminum |
| 9607 | 1.540 IN |
| Head Illustration | 183 |
| Head Type | Flat Head w/4 valve reliefs |
| Minimum Clearance | 0.001 @ 1.800 from top of head |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 94.9 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.559 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00724956362684 |
Part Interchanges
- 534NP
- Badger P417
- Badger P417-STD
- General Motors 14081252
- General Motors 14028988
- General Motors 14044649
- General Motors 14044650
- General Motors 14081291
- Clevite TC2222
- Clevite 91466
- Silvolite 1466
- Ertel 1170P
- Zollner 8232C
- Z8232C STD
- Zollner Z8232C
- Dana Commercial Vehicle Service Parts 224-2222
- Badger P417STD
- Sealed Power 9049P
- Zollner Z8232CSTD
- Dana Commercial Vehicle Service Parts 2242222
Fits Vehicles
- Pontiac Grand Prix (1983-1986)
- Pontiac Firebird (1982-1986)
- Pontiac Bonneville (1983-1986)
- Oldsmobile Cutlass Supreme (1983, 1985-1986)
- Oldsmobile Cutlass Cruiser (1982-1983)
- Oldsmobile Cutlass Calais (1983-1984)
- Pontiac Grand LeMans (1982-1983)
- Pontiac Parisienne (1982-1986)
- Oldsmobile Cutlass (1985-1986)
- Chevrolet Monte Carlo (1982-1986)
- Chevrolet Malibu (1982-1983)
- Chevrolet Impala (1982-1985)
- Chevrolet Caprice (1982-1986)
- Chevrolet Camaro (1982-1986)
- Buick Regal (1982-1986)
