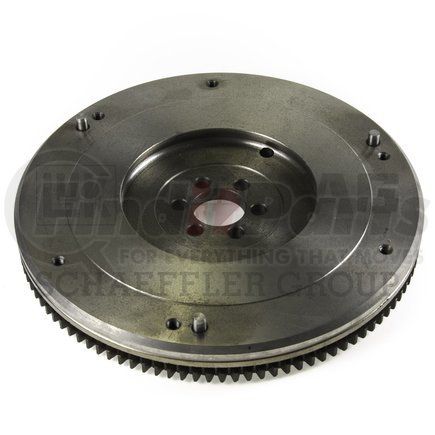

LuK LFW166 - FLYWHEEL
$7299
MSRP: $89.44
Save: $16.45
In stock
limited availability at this price!
. Learn more
LUK part description
Product Description
LuK Rigid Flywheel
Application Summary
Chevrolet Nova 1985-1988 (L4, 1.6L), Geo Prizm 1989-1992 (L4, 1.6L), Toyota Corolla 1987/1990-1992 (L4, 1.6L)
Product Attributes
| Crank To Friction Surface | 1.0551 inch |
| Crank To Friction Surface | 26.8 mm |
| Crank Hole Dia. | 0.4055 inch |
| Crank Hole Dia. | 10.3 mm |
| I.D. for Pilot | 1.4094 inch |
| I.D. for Pilot | 35.8 mm |
| Centering diameter / dowel hole | 9.2913 inch |
| Centering diameter / dowel hole | 236 mm |
| Overall Casting O.D. | 10.6929 inch |
| Overall Casting O.D. | 271.6 mm |
| Ring Gear Major Dia. | 10.6693 inch |
| Ring Gear Major Dia. | 271 mm |
| Flywheel friction surface outer diameter | 7.9528 inch |
| Flywheel friction surface outer diameter | 202 mm |
| Bolt hole PCD clutch pres.plte | 9.2913 inch |
| Bolt hole PCD clutch pres.plte | 236 mm |
| Number of mounting bores | 2 |
| Dowel hole diameter | 0.315 inch |
| Dowel hole diameter | 8 mm |
| Bolt Hole Pattern | 14 |
| Dowel Hole Pattern | 5 |
| Flange Thickness | 0.474 inch |
| Flange Thickness | 12.04 MM |
| Has Dowel Pins | with Dowel Pins |
| Flywheel Cup Depth or Step Height | 0.0197 inch |
| Flywheel Cup Depth or Step Height | 0.5 mm |
| Number of teeth, starter ring gear | 106 |
| Ring Gear Mounting O.D. | 9.252 inch |
| Ring Gear Mounting O.D. | 235 mm |
| Bolt hole PCD crankshaft | 2.126 inch |
| Bolt hole PCD crankshaft | 54 mm |
| Flywheel Thickness [mm] | 1.3465 inch |
| Flywheel Thickness [mm] | 34.2 mm |
| Ring Gear Thickness | 0.3583 inch |
| Ring Gear Thickness | 9.1 mm |
| Flywheel Friction Surface Inner diameter | 5.1181 inch |
| Flywheel Friction Surface Inner diameter | 130 mm |
Additional Information
| Remanufactured Part | N |
| Warranty Special | 12 Months or 12,000 miles, Whichever comes first |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8483508080 |
| Stock Status | S |
| UPC | 00670774100505 |
Part Interchanges
- AMS Automotive 167115
- Fenco FW9115
- LuK 4160152100
- Sachs NFW6926
- Valeo V2406
- Standard Flywheels 115
- Standard Flywheels 121
- Standard Flywheels 130
- Venture Products V2406
- PERFECTION 50-115
- OEM Part Number 1340515030
- OEM Part Number 94840045
- AMS 167115
- NAPA Clutch and Flywheel 88166
- Platinum Driveline FW115
Fits Vehicles
- Toyota Corolla (1987, 1990-1992)
- Geo Prizm (1989-1992)
- Chevrolet Nova (1985-1988)
LuK® is a worldwide leader in manufacturing clutches, power steering pumps, dual-mass flywheels, and self-adjusting clutch and engine components for various vehicle applications. It was founded by brothers George and Wilhelm Schaeffler in 1965. Initially, it was established as a manufacturer of diaphragm spring clutches with a release system. But when it was acquired by Schaeffler Group, a globally known supplier of chassis, engine, and transmission components for automotive and industrial applications, the company has grown immensely. Currently, LuK has research and development centers, offices, and manufacturing plants around the world. It remains steadfast to its commitment to providing only the highest quality clutches and other transmission, steering, suspension, and engine components.
