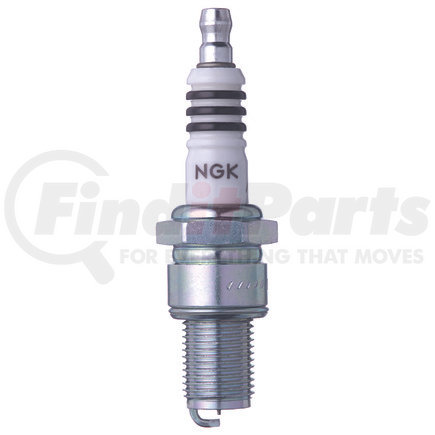

Name: NGK Spark Plugs 6801 NGK Iridium IX Spark Plug
SKU: 6801
Price: 31.96 USD
Availability: InStock

NGK SPARK PLUGS part description

BR10EIX S-PLUGS

Product Description

NGK Iridium IX Spark Plug

Features & Benefits

SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs

Product Attributes

Stock Number	6801
Part Number	BR10EIX
Resistance	5000.0 82
Ground Electrode Tip Design	Taper Cut
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Removable Nut
Center Electrode Core Material	Copper
Center Electrode Tip Material	Iridium
Pre-Gap Size	.032 IN
Ground Electrode Quantity	1
Hex Size	13/16 IN
Insulator Height	55.00 MM
Manufacturer Heat Range	10
Seat Type	Flat
Reach	0.750 IN
Thread Diameter	14.00 MM
Short Style Spark Plug	No
Service Number	BR10EIX
Washer Included	Yes
Grade Type	Performance
Hex Size	13/16"
Insulator Height	2.20 IN
Thread Diameter	0.551 IN
Insulator Material	Ceramic
Resistor Type	Yes
6648	0.0 IN
Ground Electrode Tip Material	Nickel
9459	No
9506	0.06 IN
9608	Fine Wire
9745	Crush
9805	Non-Projected

Additional Information

Harmonized Tariff Code (HTS)	8511100000
Warranty Time UOM	MO
Warranty Time	2
Country of Origin (Primary)	JP
UPC	00087295168011
VMRS Code	033003005
UNSPSC	26101732

Part Interchanges

Fits Vehicles

Aprilia RS 125 R Extrema (1993-1995)
Yamaha TZ125 (1980)
Honda CR85RB Expert (2007)
Suzuki RM65 (2004-2005)
Aprilia Tuono 125 (2004-2005)
Suzuki RM85L (2003-2008, 2012)
Honda CR85R (2003-2007)
Cobra PW3 (2003)
Cobra CH2 (2003)
ATK 125 PE (2003)
ATK 125 DS (2003)
Arctic Cat AC 440 Sno Pro (2003)
Yamaha YZ85 (2002-2020)
Suzuki RM85 (2002-2009, 2012, 2015-2017)
ATK 125 Enduro (2002-2003)
ATK 125 CC (2001)
Kawasaki KX65 (2000-2009, 2011-2019)
ATK 125 LQ (2000)
Aprilia RS 125 (1997-2002, 2006-2009)
Honda CR80RB Expert (1996-2002)
Gas Gas Enducross 125 (1996-1997)
Gas Gas Enducross TT 250 (1995)
KTM 125 EXC (1994-1997)
Gas Gas Enducross TT 125 (1993-1995)
KTM 125 SX (1992-1997)
Husqvarna WXC 125 (1992, 1996-1997)
Husqvarna WXE 125 (1990-1991, 1994-1997)
Husqvarna WMX 125 (1990)
Arctic Cat Wildcat Mountain Cat (1989)
Arctic Cat Wildcat 650 (1988-1989)
Suzuki RM80 (1986-2001)
Honda CR80R (1986-2002)
Yamaha YZ80 (1984-2001)
Kawasaki KX125 (1983-1990)
Yamaha TZ250 (1980-1981)
Suzuki PE250 (1979, 1981)
Suzuki PE175 (1979-1984)
Yamaha IT175 (1977-1978)
Honda MT125 (1977-1978)
Bultaco Pursang 370 (1977-1979)
Bultaco Pursang 250 (1977-1979)
Yamaha YZ125 (1976-1981)
Yamaha YZ100 (1976-1981)
Yamaha SR292 (1975)
Yamaha TZ350 (1974)
Yamaha TR3 (1972)
Yamaha TD3 (1972)
Kawasaki H1 Mach III (1970-1971)

Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
