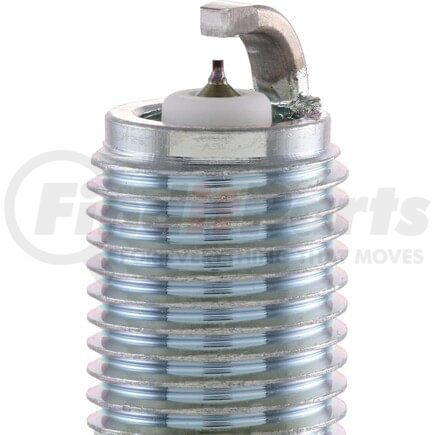

NGK Spark Plugs 93675 - NGK Laser Iridium High Ignitability Spark Plug
- Part Number
- 93675
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Iridium High Ignitability Spark Plug
details
$1749
In stock
limited availability at this price!
. Learn more
NGK SPARK PLUGS part description
Product Description
NGK Laser Iridium High Ignitability Spark Plug
Features & Benefits
- NGK Laser Iridium High Ignitability spark plugs are designed with the most advanced OE tip configurations to maximize service life and combustion efficiency resulting in a quicker throttle response, smoother idle and better cold starts.
- ACTUAL OE or EQUIVALENT HIGH IGNITABILITY DESIGN: SPE tip and iridium alloy center electrode produce the most advanced OE spark plug technology
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- SPE DESIGN: Square platinum electrode shape of the ground electrode provides the best ignitability and service life for high heat engines
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE SPE iridium alloy plugs
Product Attributes
| Stock Number | 93675 |
| Part Number | SILMAR7A9S |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Square Platinum Electrode (SPE) - High Ignitability |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 14 MM |
| Insulator Height | 51.00 MM |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 26.5 MM |
| Thread Diameter | 10.00 MM |
| Short Style Spark Plug | No |
| Service Number | SILMAR7A9S |
| Washer Included | Yes |
| Grade Type | Performance |
| Hex Size | 14mm |
| Insulator Height | 2.01 IN |
| Reach | 1.043 IN |
| Thread Diameter | 0.394 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| 9459 | No |
| 9506 | 0.08 IN |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9805 | Mid Projection |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295936757 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Honda SXS1000M3 Pioneer 1000 Deluxe (2020)
- Honda SXS1000M5 Pioneer 1000-5 Limited Edition (2017-2020)
- Honda SXS1000M3 Pioneer 1000 Limited Edition (2017-2019)
- Honda SXS1000M3 Pioneer 1000 EPS (2016-2019)
- Honda SXS1000M3 Pioneer 1000 (2016-2020)
- Honda SXS1000M5 Pioneer 1000-5 Deluxe (2016-2020)
- Honda SXS1000M5 Pioneer 1000-5 (2016-2020)
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
