(888) 312-8812 Login SignupDONALDSON P550105 Fuel Filter - 5.35 in., Spin-On Style, Cellulose Media Type
MSRP: $22.00
$899
Save $13.01
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 23
DONALDSON P550105 Part Description
Manufacturer
Product Description
FUEL FILTER, SPIN-ON
Application Summary
CUMMINS 154709
Features & Benefits
- White exterior finish allows easy identification in storage areas
- Smooth painted shell resists staining from fuel residue
- Clearly printed markings improve readability on crowded shelves
- Even base plate surface supports steady mounting contact

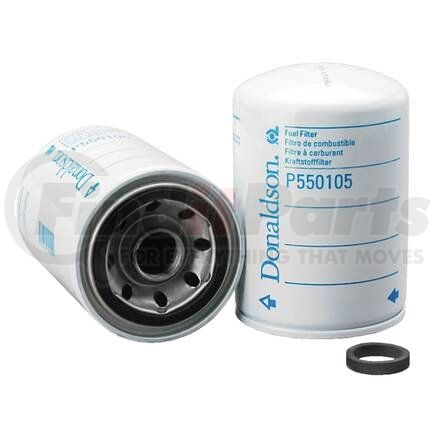

Donaldson Spin-On Fuel Filter
Because diesel fuel quality can vary by source, the Donaldson Spin-On Fuel Filter provides controlled contaminant capture in a 5.35 in spin-on configuration built with cellulose filtration material. Installed between the supply line and injection components, this filter retains suspended particles that could otherwise interfere with injector spray patterns. Its threaded base allows direct mounting to compatible filter heads, creating a secure seal at the contact surface. The cellulose construction traps particulate matter within its layered fibers while maintaining steady fuel delivery. The Donaldson P550105 provides stable combustion performance in equipment that requires dependable diesel conditioning.
DONALDSON P550105 Specifications
Product Attributes
| Length | 5.35 in |
| Collapse Burst | 6.9 BAR |
| Efficiency 99% | 25 MICRON |
| Efficiency Test Std | SAE J1985 |
| Gasket Id | 2.44 IN |
| Gasket Od | 2.83 IN |
| Media Type | Cellulose |
| Outer Diameter | 3.66 IN |
| Primary Application | CUMMINS 154709 |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Length | 5.35 IN |
Additional Information
| Country of Origin (Primary) | CO |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00742330040904 |
DONALDSON P550105 Cross References
| Brand | Part Number |
|---|---|
| AC DELCO | TP1261, TP629 |
| ADVANCE MIXER | A0105 |
| AG CHEM EQUIPMENT | 15909 |
| ALCO | SP848 |
| ALLIS-CHALMERS | 154709, 4021442 |
| BALDWIN | BF957 |
| FLEETGUARD | FF105 |
| FRAM | PS6829, PS8048, P3528AFP, P3528A |
| LUBER-FINER | LFF5 |
| N/A | P231, 999, F962, FF1048, FF962, 962, FF999, P3528, P3528A, P3528AFP, P7251, HDF1, F220, F44R, KF44R, 6683776, F60232, F60233, 6665982, PER232, PIL15, S80009, 533109, CW1109MP, 33109, 33109MP, 95504, 503, 95109, 95109MP, BF5801, BF7529, BF7557, BF957B, BF7557B, BF957, LFF8288, TP1287, 86109, 86109MP, YE3315847, YE404060, FF5161, FF5332, FF5376, FF5578, FFR85161, NF200, FFR8105, ABPN10GFF105, 154709, 3109, 3109MP, J8621105, J8621105D, 85042A, 17000008, 170010008, 170035001, 891733, 892868, TP1261, TP629, 8766599, G033109, G033107, 154700, 154710, 154711, 154744, 156171, 158172, 212013, 252811, 3300901, 3315804, 3315844, 3315845, BM68669, BM76976, BM78669, BM78672, C156172, C3315844, FF105, FF5, 8917333, PF105, PF213, 10012187, 2266555, 3I0750, 3I1143, 3I1144, 9Y4402, 9Y4403, 69008930, 1537614, 2002E9176A, 5000987, 6019967, 72MF9176AA, 9576P550105, C6TZ9155A, C6TZ9155B, V608T118, KC4510, A16001, HDA16001, FC5701, BM59678, 10105, WGF104, WGF105, WGF213, DNP550105, T121085, T121090, K251C390, KW105, KW213, SFF105N, A0105, DONP550105, HF506, LFF5, LFP1101FD, 97342400184, WP9623X, WK9322, WK95016X, WK9552, H177WK, 5000808717, 5001004319, F2750506, U1350555, 28035, SFD28035, 1244483H1, 6003118321, 6003118331, 6221716302, 692304, 988689, 988732, 988739, CUFF105, 7361503, 8754195, 7402000, 7402022, 3A11535, 3A15998, 86779400377, FT050500, FT050505, 1212623H1, 102625, 763553, 608T118, S812, BH59678, E780113189, 24351, 3130909, 6236696, 991215847, 2191P550105, FD11H, GP11, GP1101, GP11M, GPP11, 700702595, QS1103, QS3528, 210633S1, DR105, MPL397, 892168, MCC231US, MCC15US, 9455160325, FL152, FL180, EFG12, FD152, FD152FP, SL603050, SWT603050, 95107, 529, 539, AZF002, Z14, 3647853, PM333, 244458R91, AP81301, AP81302, APF3231A, APF81302A, LK81301, LK81302, LK81303, 128637, 138267, 138637, 1930768, 4021442, 71497006, 76107722, 76190709, 76191167, BG1514, BG1528, CS163, Z159, Z48, 92819117, SRP1101L, SRP1101LFFSD, 120036538, S253CP, S254CP, L56, 121989, PF343, 12706510, 012706510, CU1561726, 2999005, 592, 592CUM, FF2008, ME035394, ME035532, 38F6200301, 234011220, 234011281, 235011010, 254011010, 1273400051, 408925, SN105, SN25025, PC1103, PB105, 4175915, 4656586, L4091472, 7015, 00007015, 15909, 143753, 420005, 35289081, 35290535, 91671743, 900009, 72642051021, 8500674, AW8, EH2211, KC28, 201002, 29214193, 1492249, 2706066001, 9414100481, FC368, SP470M, SP522, 31701105, D156172, 988702, Y02111703, Y02178911, YO5004301, Y02H1703, YO2111703, YO2178911, CU156172, 75061536, 5053722, MP453, DK23F, WFF105P, 330560070, FF2082, CN33109, SF231 |
| PUROLATOR | F60232 |
| WIX FILTERS | 33109 |
DONALDSON P550105 Fits Vehicles
- Volvo VNL (2000-2002)
- Volvo VNM (2000-2002)
- Volvo WX (1996-1999)
- Volvo WH (1996-1997)
- Volvo WC (1996-1998)
- Volvo ACL (1996-2001)
- Volvo WI (1996-1998)
- Volvo WG (1996-2001)
- Volvo VN (1998-1999)
- Peterbilt 388 (2008-2011)
- Peterbilt 386 (2006-2012)
- Peterbilt 372 (1989-1993, 1997)
- Peterbilt 377 (1996-2001)
- Kenworth K100E (1985-2002)
- Kenworth C500 (1981-2002, 2011-2015)
- Peterbilt 385 (2001-2006)
- Kenworth T400 (1995-1998)
- Peterbilt 340 (2007)
- Peterbilt 335 (2005-2006)
- Peterbilt 379 (2000-2007)
- Peterbilt 378 (1988-2002)
- Peterbilt 357 (1987-2002, 2005-2007)
- Kenworth T800 (1987-2002)
- Peterbilt 387 (2000-2011)
- Kenworth T2000 (1997-2002)
- Freightliner Columbia (2001-2002)
- Ford LNT9000 (1984-1997)
- Ford LTL9000 (1986-1990, 1992-1996)
- Ford LLS9000 (1996)
- Ford LN9000 (1984-1997)
- Ford LL9000 (1987-1990, 1992, 1994, 1996)
- Ford LTS9000 (1985-1997)
- Ford LTLS9000 (1992-1996)
- Ford LTLA9000 (1992-1994)
- Ford LTA9000 (1988-1997)
- Ford LT9000 (1984-1997)
- Ford LLA9000 (1992-1995)
- Ford LS9000 (1987-1997)
- Ford LA9000 (1988-1997)
- Ford L9000 (1985-1997)
- Ford CLT9000 (1986, 1988, 1990-1991)
- Ford CL9000 (1987-1991)
DONALDSON P550105 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON P550105 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
