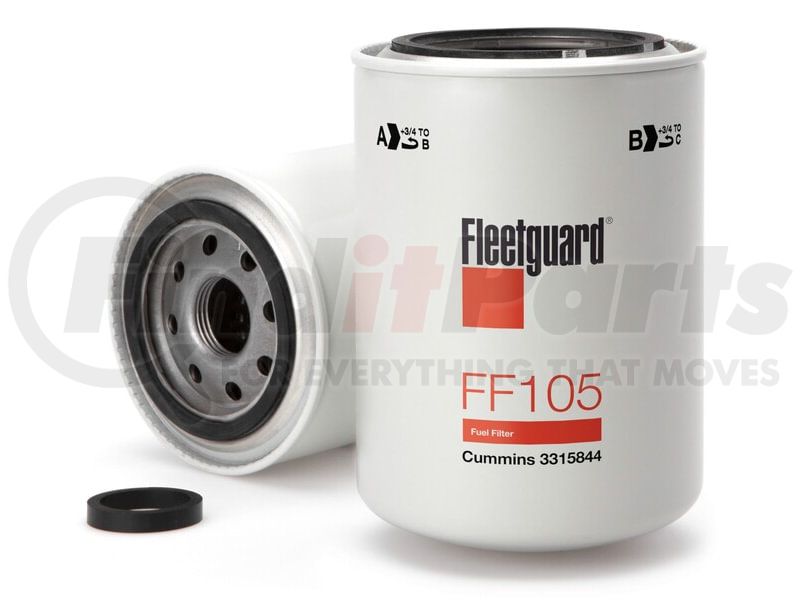

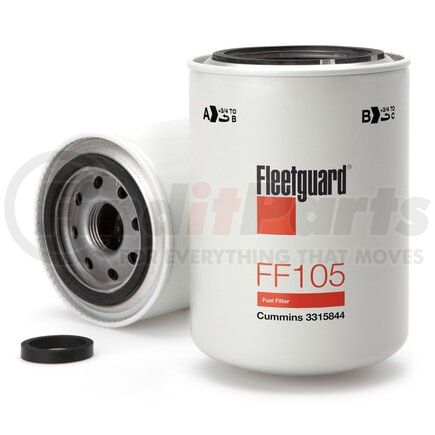

(888) 312-8812 Login SignupFLEETGUARD FF105 Fuel Filter, Spin-On
MSRP: $18.45
$1199
Save $6.46
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 10
FLEETGUARD FF105 Part Description
FLEETGUARD FF105 Specifications
Product Attributes
| Capacity Test Specification | SAE J905 IN |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8342462999999998 IN |
| Height | 5.409845441 in |
| Largest Outside Diameter | 3.6921186 IN |
| Media Type | Cellulose IN |
| Primary Particle Efficiency | 17.3 micron (c) @ 96% IN |
| Rated Flow | 1.50594 IN |
FLEETGUARD FF105 Cross References
| Brand | Part Number |
|---|---|
| FGFF105, HK4Z9963805LB | |
| AC | TP629, TP629F |
| AP Lockheed | AP81301, APF81302A, LK81301, LK81303 |
| Air Refiner | PF105 |
| Atlas-Copco | 9710177600, 9806000200 |
| BALDWIN | BF957 |
| Baldwin | B140, BF5801, BF957B |
| Benati | 3648753 |
| Big A | 503, 529, 539, 95109, 95109MP |
| Blount | 10012187 |
| Bomag | 31701105 |
| Bosch | 9455080007, 9455160325, 986450714 |
| CARQUEST | 86109, 86109MP |
| CUMMINS | 154709, 3315844 |
| Case | 28035, 2835 |
| Caterpillar | 3I1143, 9Y4402 |
| Champ | FF5, LFF5 |
| Coles | 8766599 |
| Conoco | CN33109 |
| Coopers | AZF002 |
| Cummins | 1492249, 158172, 252811, 3315804, C156172 |
| Cyclone | PM333 |
| DAF | C3315844 |
| DONALDSON | P550105 |
| Daewoo | 65125035025A |
| Demag | 988732 |
| Donaldson | FFP550105, P779381 |
| Doosan | 95125035025 |
| FRAM | P3528, P3528A, PS6829, PS8048, P3528AFP |
| Filca | FC231US |
| Flo-line | PF105 |
| Foden | Y02111703, Y02178911 |
| Ford | 72MF9176AA, C6TZ9155A, C6TZ9155B |
| GMC | 6436572 |
| Gonher | GP11, GP11M |
| Grove | 9414100143, 9414100481 |
| Guardian | G033109 |
| Harmo | S812 |
| Hastings | 962, F962, FF1016, FF962 |
| Hengst | H13WK |
| Hino | 234011220 |
| Hough | 1212623H1 |
| Hutchens | SF231 |
| International Harvester (IHC) | 244458R91 |
| Kenworth | K251C390, KW105 |
| Knecht | AW8, EH2211 |
| Komatsu | 1244483H1, 6221716302, CUFF105, DA1467 |
| Kralinator | F220, F44R |
| LUBER-FINER | LFF5 |
| Lancer Boss | 8500674 |
| Leyland | CU156172 |
| Liebherr | 7402000, 7402022 |
| Link-Belt | 3A11535, 3A15998 |
| M Filter | MP453P |
| MAN | 86779400377 |
| MICRO | PHM1103 |
| Mann-Filter | WP9623X |
| Massey Ferguson | 3621382M1 |
| Maste | DK23F |
| Motorcraft | EFG12, FD152, FD152FP, FL152 |
| N/A | FF1101F, 451302001, L69, FFP550104, 120517, 126517, 945, 85011A, P1101A, QS1101, 33107, 488, G033107, 35289081, FT050500, 86107, 4175915, WK9322, 15909, PF104, A945, SP564M, 3I0750, 3679734, CN33107, AZF001, 330106, 70126517, FC15US, BM59678, 667670100, 23516189, H131WK, S234011372, 1572081, RE42050, FD8236, SF15, 7364439, 13867, 763553, 1046Z144, PF340, E2750506, P1101M, FT2248, 318880, 284210, SRP1101, 28035, RN154, FP1101P, S119CP, PB104, 244242R91, 3107, TP567, SN105, PC1103, MCC15US, L145, KC4510, PFF5679, 1138627, 1214920H1, 4531013, ABPN10GFF104, FT4409, SP848 |
| NAPA | 3109, 3109MP |
| Nelson | 85042A, W1P2299, W6L7440, WFF105, WFF105P |
| Paccar Parts | Y02111703 |
| Permatic | GF609 |
| Perry | PF343 |
| Peterbilt | PB105 |
| Phillips 66 | P231 |
| Pinguely | 189000155709 |
| Purflux | CS163 |
| Purolator | 6683776, F60232, PER232, PIL15, S80009 |
| Quaker State | QS1103 |
| Renault | 5000808717, 5001004319 |
| Ryco | Z159, Z48 |
| SDMO | 330560070 |
| Savara | 92819117 |
| Sisu | 1273010051, 1273400051 |
| Tec-Fil | PSC172 |
| Texaco | HDF1 |
| Trane | 2706066001 |
| UFI | 2431000 |
| Volvo | 24351, 891733, 991215847 |
| WABCO | KC4510 |
| WGB | S253CP |
| WIX FILTERS | 33109 |
| White | 170010008, 891733 |
| Wix | 33109, 33109MP, 533109, CW1109MP |
| Woodgate | WGF105 |
FLEETGUARD FF105 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD FF105 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
