DANA part description

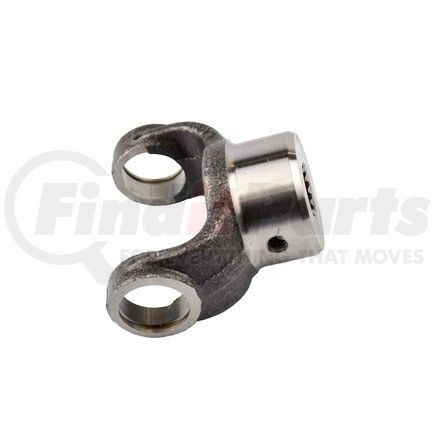

Spicer 2-4-3331 1310 End Yoke .875"X13 Inv.
243331
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

2-4-3331
JOINT SERIES:1310
D DIMENSION:1.062
E DIMENSION:3.47 SR or 3.22 UB/BS
YOKE STYLE:Snap Ring
Q LENGTH THRU HOLE:1.567
R HUB DIAMETER:2
S CENTERLINE TO END:2.562
SPLINE COUNT:
SPLINE OD:
NOTES:.375 Diameter set screw; Hub diameter not ground

Features & Benefits

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana.
  • Tested and validated to rigorous OE specifications.
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.

Product Attributes

Series 1310
Material Steel
Spline Count 13
Type Splined Hole
Hub Diameter R 2.000 IN
Involute Spline I
Length Thru Hole Q 1.567 IN
Outside Yoke Dimension (In) E 3.469 IN
Yoke Bearing Dimension (In) D 1.062 IN
Yoke Style SR
Major Diameter 0.878 IN
C/L To End Hub S 2.562 IN
Joint Angle #1 30

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8708990000
Harmonized Tariff Code (HTS) 8708990000
UPC 00023913230074
VMRS Code 024001003
