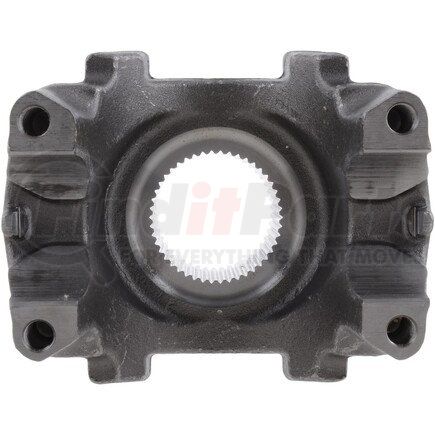

Name: Dana 170-4-1271-1 SPL170 Series Drive Shaft End Yoke - Steel, 46 Spline, HR Yoke Style, Splined Hole
SKU: 170412711
Price: 262.99 USD
Availability: InStock

DANA part description

Spicer 170-4-1271-1 SPL170 Jackshaft End Yoke
170412711
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

170-4-1271-1
JOINT SERIES:SPL170
D DIMENSION:1.938
E DIMENSION:5.457
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.75
R HUB DIAMETER:2.879
S CENTERLINE TO END:5.59
SPLINE COUNT:46 I
SPLINE OD:2.39
NOTES:Coupling shaft yoke

Product Description

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine OE quality. Tested and proven.

Product Attributes

Series	SPL170
Material	Steel
Spline Count	46
Type	Splined Hole
Assembly	N
Hub Diameter R	2.879 IN
Includes Slinger/Plug	N
Involute Spline	I
Length Thru Hole Q	2.750 IN
Outside Yoke Dimension (In) E	6.456 IN
Yoke Bearing Dimension (In) D	2.166 IN
Yoke Style	HR
Major Diameter	2.390 IN
C/L To End Hub S	5.590 IN
C-Bore Depth	0.157 IN
C-Bore Diameter	2.4409 IN
Joint Angle #1	25

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913248703
VMRS Code	024001003

Part Interchanges

DANA 170-4-1271-1 Cross Reference

We have 2 alternatives for the 170-4-1271-1 by DANA:
