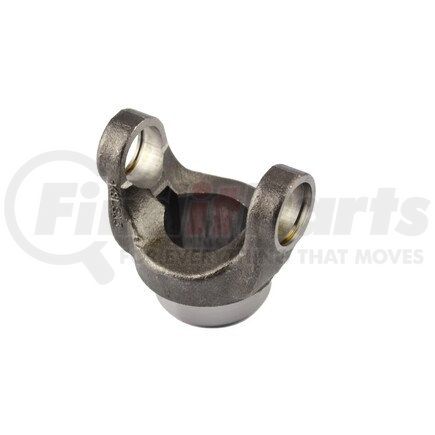

Dana 2-4-1233 - 1310 Series Drive Shaft End Yoke - Steel, SR Yoke Style, Straight Round Hole
$9149
MSRP: $98.46
Save: $6.97
In stock
limited availability at this price!
DANA part description
Series: | 1310 |
Yoke Style: | SR |
Hub Diameter (R): | 2.125 |
C/L to End Hub S: | 2.562 in. |
Type: | Straight Round Hole |
Outside Yoke Dimension (E): | 3.47 in. |
Yoke Bearing Dimension (D): | 1.062 in. |
Involute Spline: | N |
Hole Diameter (P): | 1.500 in. |
SAE Keyway Width (IN) X: | 0.375 |
Set Screw Hole Diameter (IN): | 0.375 |
Keyway Location W: | 12 |
Set Screw Location W: | 6 |
Material: | Steel |
Joint Angle #1: | 17 |
Hole Diameter - Max: | 1.5005 |
Hole Diameter - Min: | 1.4995 |
Keyway Width - Max: | 0.375 |
Keyway Width - Min: | 0.374 |
Features & Benefits
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Product Attributes
Series | 1310 |
Material | Steel |
Type | Straight Round Hole |
Hole Diameter (In) P | 1.500 IN |
Hub Diameter R | 2.125 IN |
Involute Spline | N |
Outside Yoke Dimension (In) E | 3.469 IN |
Yoke Bearing Dimension (In) D | 1.062 IN |
Yoke Style | SR |
Keyway Location W | 12 |
Sae Keyway Width (In) X | 0.375 IN |
Set Screw Location W | 6 |
C/L To End Hub S | 2.562 IN |
Joint Angle #1 | 17 |
Set Screw Hole Diameter (In) | 0.375 IN |
Hole Diameter - Max | 1.5005 IN |
Hole Diameter - Min | 1.4995 IN |
Keyway Width - Max | 0.375 IN |
Keyway Width - Min | 0.374 IN |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (Schedule B) | 8708990000 |
Harmonized Tariff Code (HTS) | 8708990000 |
UPC | 00023913229061 |
VMRS Code | 024001003 |
Part Interchanges
- Neapco OE Series N2-4-1233
- Daimler Truck North America SP 2 4 1233
- Daimler Truck North America SP 2 4 1233HP
- Dana Commercial Vehicle Service Parts 2104-241233
- Dana Commercial Vehicle Service Parts 241233
- Volvo 2104-241233
- Volvo 241233
- Volvo 3099104
- Volvo SP 241233
- International Harvester (IHC) 241233
- International Harvester (IHC) D241233
- International Harvester (IHC) E241233
- McNeilus 9HA300
- Navistar 241233
- Navistar D241233
- Navistar DS241233
- Navistar E241233
- Paccar Parts 2-4-1233
- Mack 2104-241233
- Mack 241233
- Freightliner SP 2 4 1233
- Freightliner SP 2 4 1233HP
- Peterbilt 2-4-1233
- Peterbilt 9HA300
- UAP 2-4-1233
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
