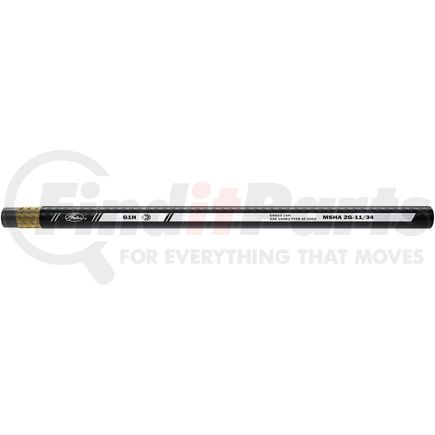

Name: Gates 85937 Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT
SKU: 85937
Price: 2222.49 USD
Availability: InStock

GATES 85937 Part Description

Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT

For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series]
Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing routing
Meets Flame Resistance Acceptance Designation MSHA 2G
Temperature Range: Hydraulic Oil Lines: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) constant; +300 Deg. F (+149 Deg. C) intermittent (up to 10 percent of operating time)

GATES 85937 Specifications

Dash Size	32
Inside Diameter	2 IN
Outside Diameter	2.51 IN
Bend Radius	25 IN
Tube Description	Black, Oil-Resistant, Synthetic Rubber
Hose Material	Nitrile - Type C
Reinforcement Material	One Braid of High-Tensile Steel Wire
Cover Material	Synthetic Rubber - CSM - Type M
Cover Type	Type M - Flame, Oil & Abrasion Resistant
Cover Color	Black
Coupling Recommendation	GlobalSpiral Plus, Stainless Steel B
SAE Standard	100R1
EN Standard	854 1SN
ISO Standard	1437 1SN R1
Product Type	Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT
Industrial Description	32G1HX50FT
Type	Hydraulic Hose
Hose Pressure Description	Medium Pressure
Maximum Working Pressure	600 PS
Burst Pressure	2400 PS
Temperature Rating	-40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
Length	50 FT

Harmonized Tariff Code (Schedule B)	4009210000
Country of Origin (Primary)	US
UPC	00770075323778
VMRS Code	059032029
UNSPSC	40142020

Brand	Part Number
NAPA	85937
