RAYBESTOS 580406 Part Description
Manufacturer
Product Description

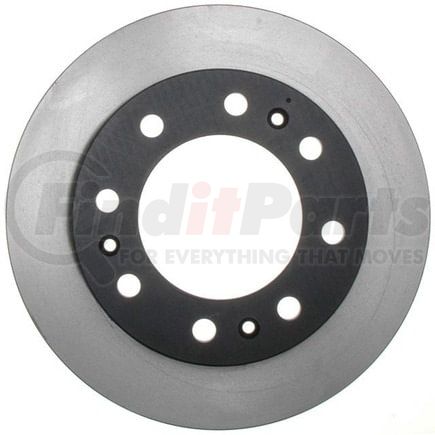

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2011-2006 Cadillac DTS Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580406 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.65 IN |
| Center Hole Diameter | 118.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.417 IN |
| Discard Thickness | 36 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.496 IN |
| Nominal Thickness | 38 MM |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330 MM |
| Overall Height | 3.315 IN |
| Overall Height | 84.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352541081 |
RAYBESTOS 580406 Cross References
| Brand | Part Number |
|---|---|
| AST24668, 829352541081 | |
| ACDELCO | 177-0993 |
| ADVANCE AUTO PARTS | YH145665, YH145665C, YH145665P |
| AUTOXTRA | AX901022 |
| AUTOZONE | 41218, 41218DG |
| BENDIX | PRT5665 |
| BOSCH | 25010692 |
| BRAKEBEST | 25010692, 580406, 580406FZN, 580406R, 580406RGS |
| CENTRIC | 120.62100, 121.62100, 126.62100CSL, 126.62100CSR, 126.62100SL, 126.62100SR, 127.62100L, 127.62100R |
| Casting Numbers | 211768-C |
| Centric Parts | 120.62100, 121.62100, 126.62100CSL, 126.62100CSR, 126.62100SL, 126.62100SR, 127.62100L, 127.62100R |
| DURA CORP | BR55128, BR901022 |
| DuraGo | 901022, BR901022, BR90102602, BR901026-02 |
| GM | 10388030, 19303810 |
| General Motors | 10388030, 19303810 |
| NEOTEK | 1072034GF |
| NEWTEK AUTOMOTIVE | 55128 |
| Newtek Automotive USA | 55128 |
| PROMAX | 14-55128 |
| PRONTO | BR901022 |
| Qualis | 41218 |
| TRUSTAR | 493785 |
| UAP | 55128 |
| WAGNER | BD180179 |
| WAGNER BRAKE | BD180179 |
| WINHERE | 6620714 |
RAYBESTOS 580406 Fits Vehicles
- Cadillac DTS (2006-2011)
