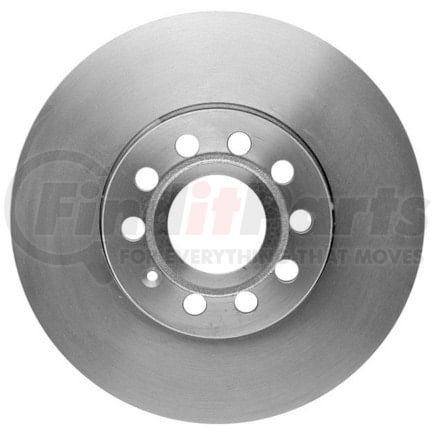

Raybestos 980456 - Raybestos Specialty - Street Performance Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
RAYBESTOS part description
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2021-2005 Volkswagen Jetta Front, 2021-2010 Volkswagen Golf Front, 2019-2012 Volkswagen Beetle Front, 2023-2021 Volkswagen Taos Front, 2019-2015 Volkswagen Golf SportWagen Front, 2009-2006 Volkswagen Rabbit Front
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.56 IN |
| Center Hole Diameter | 65 MM |
| Construction | Full Cast |
| 9565 | Conventional |
| 9540 | Non-Directional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22 MM |
| Grade Type | Regular |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.35 IN |
| Inside Diameter | 161.3 MM |
| Material | Cast Iron |
| Misc. Holes | 5 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.605 IN |
| Mounting Bolt Hole Diameter | 15.35 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.98 IN |
| Nominal Thickness | 24.9 MM |
| Outside Diameter | 11.335 IN |
| Outside Diameter | 287.9 MM |
| Overall Height | 1.945 IN |
| Overall Height | 49.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | DE |
| UPC | 00829352398487 |
Part Interchanges
- Volkswagen 16D615301A
- Volkswagen 1K0615301K
- Volkswagen 1K0615301T
- Volkswagen 1KD615301
- Volkswagen 5C0615301A
- Volkswagen 5C0615301D
- Volkswagen 5CO615301A
- Volkswagen 5Q0615301H
- API 1407-75717
- Brembo 09.9145.11
- Wagner Brake BD126323
- Bendix PRT5682
- PowerStop EBR830EVC
- BrakeBest 980456
- BrakeBest 980456FZN
- BrakeBest 980456R
- BrakeBest 980456RGS
- Centric Parts 120.33110
- Centric Parts 121.33110
- Centric Parts 125.33110
- Centric Parts 125.33110CRY
- Centric Parts 126.33110CSL
- Centric Parts 126.33110CSR
- Centric Parts 126.33110SL
- Centric Parts 126.33110SR
- Centric Parts 127.33110CL
- Centric Parts 127.33110CR
- Centric Parts 127.33110L
- Centric Parts 127.33110R
- Centric Parts 128.33110CL
- Centric Parts 128.33110CR
- Centric Parts 128.33110L
- Centric Parts 128.33110R
- Centric Parts 227.33110L
- Centric Parts 227.33110R
- Centric Parts 320.33110
- Centric Parts 320.33110F
- WABCO - Archived PS126323
- AutoZone 45111
- AutoZone 45111DG
- Monroe Brakes BD126323
- Advance Auto Parts 145682
- Advance Auto Parts N1000182776ZIC
- Advance Auto Parts YH145682
- Advance Auto Parts YH145682C
- Advance Auto Parts YH145682P
- Autopartsource 416330
- Autoxtra AX900412
- Dura Corp BR34303
- Dura Corp BR900412
- Dura Corp BR90041202
- Pilenga V861
- PAGID Racing 355109582
- Qualis 45111
- Winhere 662958
- Newtek Automotive USA 34303
- TRW 4295
- Promax 14-34303
- Promax 20-34303
- UAP 34303
- Wagner Brake BD126323E
- Centric Parts 321.33110
- Volkswagen 5QM615301
- Ultra Brake VW-280
- DuraGo 900412
- DuraGo BR900412
- DuraGo BR90041202
RAYBESTOS 980456 Cross Reference
We have 64 alternatives for the 980456 by RAYBESTOS:
- 829352398487
- 120.33110
- NEOTEK 106059GF
- BENDIX PRT5682
- PAGID 355109582
- WABCO PS126323
- ADVANCE AUTO PARTS 145682
- ADVANCE AUTO PARTS N1000182776ZIC
- ADVANCE AUTO PARTS YH145682
- ADVANCE AUTO PARTS YH145682C
- ADVANCE AUTO PARTS YH145682P
- API 1407-75717
- AUTOPARTSOURCE 416330
- AUTOXTRA AX900412
- AUTOZONE 45111
- AUTOZONE 45111DG
- BRAKEBEST 980456
- BRAKEBEST 980456FZN
- BRAKEBEST 980456R
- BRAKEBEST 980456RGS
- BREMBO 09.9145.11
- CENTRIC 120.33110
- CENTRIC 121.33110
- CENTRIC 125.33110
- CENTRIC 125.33110CRY
- CENTRIC 126.33110CSL
- CENTRIC 126.33110CSR
- CENTRIC 126.33110SL
- CENTRIC 126.33110SR
- CENTRIC 127.33110CL
- CENTRIC 127.33110CR
- CENTRIC 127.33110L
- CENTRIC 127.33110R
- CENTRIC 128.33110CL
- CENTRIC 128.33110CR
- CENTRIC 128.33110L
- CENTRIC 128.33110R
- CENTRIC 227.33110L
- CENTRIC 227.33110R
- CENTRIC 320.33110
- CENTRIC 320.33110F
- CENTRIC 321.33110
- DURA CORP BR34303
- DURA CORP BR900412
- DURA CORP BR90041202
- MONROE BRAKES BD126323
- NEWTEK AUTOMOTIVE 34303
- PILENGA V861
- POWERSTOP EBR830EVC
- PROMAX 14-34303
- PROMAX 20-34303
- QUALIS 45111
- TRW 4295
- UAP 34303
- VOLKSWAGEN 16D615301A
- VOLKSWAGEN 1K0615301K
- VOLKSWAGEN 1K0615301T
- VOLKSWAGEN 1KD615301
- VOLKSWAGEN 5C0615301A
- VOLKSWAGEN 5C0615301D
- VOLKSWAGEN 5CO615301A
- VOLKSWAGEN 5Q0615301H
- WAGNER BRAKE BD126323
- WINHERE 662958
Fits Vehicles
- Volkswagen Taos (2021-2023)
- Volkswagen Golf SportWagen (2015-2019)
- Volkswagen e-Golf (2015-2020)
- Audi A3 Quattro (2009-2013)
- Volkswagen GTI (2013)
- Volkswagen Beetle (2012-2019)
- Volkswagen Golf (2010-2021)
- Volkswagen Bora (2006-2010)
- Audi A3 (2009-2013, 2015-2016)
- Volkswagen Eos (2009-2013)
- Volkswagen Rabbit (2006-2009)
- Volkswagen Jetta (2005-2023)
