RAYBESTOS 96427R Part Description
Manufacturer
Product Description

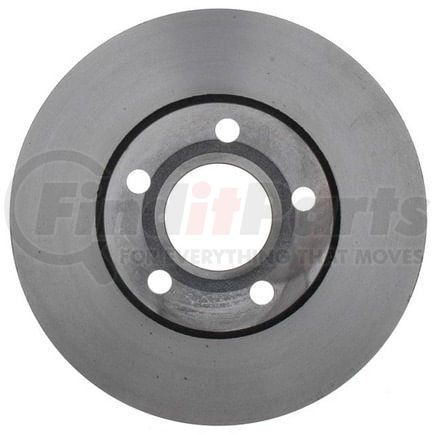

Raybestos R-Line Brake Rotor
Application Summary
1988-1986 Audi 5000 Front, 1988-1986 Audi 5000 Quattro Front, 1990-1989 Audi 200 Quattro Front, 1991-1989 Audi 200 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96427R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 10.86 IN |
| Outside Diameter | 275.85 MM |
| Overall Height | 1.82 IN |
| Overall Height | 46.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352466292 |
RAYBESTOS 96427R Cross References
| Brand | Part Number |
|---|---|
| ARD847LI, 829352466292 | |
| ADVANCE AUTO PARTS | 141887, YH141887 |
| AMERICAN REMANUFACTURED | 789-96017, 89-96017 |
| AUDI | 447615301A, 447615301B |
| AUTOSPECIALTY | EBR237, EBR237E |
| AUTOXTRA | AX34000 |
| AUTOZONE | 34000, 34000DG |
| BECK/ARNLEY | 083-2182 |
| BENDIX | 141887 |
| BOSCH | 0986-478-229, 14010030 |
| BRAKE HEADQUARTERS | BR03043 |
| BRAKEBEST | 14010030, 96427, 96427R, 96427RGS |
| BREMBO | 09.5734.10, 25387 |
| CALIFORNIA DRUM & ROTOR | 61975 |
| CENTRIC | 120.33021, 121.33021 |
| CENTURY | 9446 |
| Casting Numbers | 326132 |
| Centric Parts | 120.33021, 121.33021 |
| DELPHI | RB313 |
| DURA CORP | BR34000 |
| DuraGo | BR34000 |
| EIS BRAKES | D17444 |
| EUROROTOR | AU244 |
| GREN | 411302 |
| INTERBRAKES | AD191V |
| MIGHTY DISTRIBUTING SYSTEM | 34000 |
| NEWTEK AUTOMOTIVE | 34000 |
| Newtek Automotive USA | 34000 |
| PILENGA | V368 |
| QUALIS | 34000 |
| QUALITY BRAND | 34000, Q182 |
| QUINTON HAZELL | BDC3635 |
| ROCKHILL | 34000 |
| THE UNIVERSAL GROUP | 117086 |
| TRUSTAR | 411140 |
| TRW | 2626 |
| UAP | 34000 |
| Universal | 117086 |
| VAICO | V1080050 |
| VERA | 3405490 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50814 |
| WAGNER BRAKE | BD61975 |
RAYBESTOS 96427R Fits Vehicles
- Audi 5000 Quattro (1986-1988)
- Audi 5000 (1986-1988)
- Audi 200 (1989-1991)
- Audi 200 Quattro (1989-1991)
