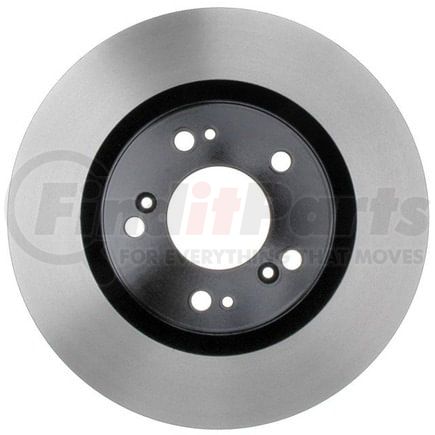

RAYBESTOS 980455 Raybestos Specialty - Street Performance Brake Rotor

MSRP: $69.25

$67.99

Save $1.26

Limited availability at this price!

In Stock

Get it by Thursday, Feb 12
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

RAYBESTOS 980455 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

2012-2006 Mitsubishi Eclipse Front, 2009-2006 Mitsubishi Galant Front

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 980455 Specifications

Product Attributes

Conventional Or Drum-In-Hat Type Rotor Conventional
Directional or Non-Directional Brake Surface Non-Directional
Discard Thickness 0.961 IN
Discard Thickness 24.4 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.495 IN
Mounting Bolt Hole Diameter 12.55 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.024 IN
Nominal Thickness 26 MM
Outside Diameter 11.579 IN
Outside Diameter 294.1 MM
Overall Height 1.79 IN
Overall Height 45.45 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352502624

RAYBESTOS 980455 Cross References

BrandPart Number
ASH85890, 829352502624
ADVANCE AUTO PARTSYH145526
AUTOXTRAAX31346
AutoxtraAX31346P
BOSCH38011013, 38011030
BRAKEBEST38011013, 38011030, 980455, 980455FZN, 980455R, 980455RGS
CENTRIC120.46068
Casting Numbers326345
DURA CORPBR31448
MITSUBISHI4615A055, 4615A067, 4615A068
NEWTEK AUTOMOTIVE31448
Newtek Automotive USA31448
PROMAX14-31448
PRONTOBR31346
Parts Master126335
UAP31448
Ultra BrakeMI-366
WAGNERBD126335, BD126335E
WINHERE6620684
WORLDPAC1407-75689
Wagner BrakeBD126335E

RAYBESTOS 980455 Fits Vehicles

  • Mitsubishi Galant (2006-2009)
  • Mitsubishi Eclipse (2006-2012)
