(888) 312-8812 Login SignupRAYBESTOS 980307R Raybestos R-Line Brake Rotor
MSRP: $115.38
$8549
Save $29.89
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 24
RAYBESTOS 980307R Part Description
Manufacturer
Product Description

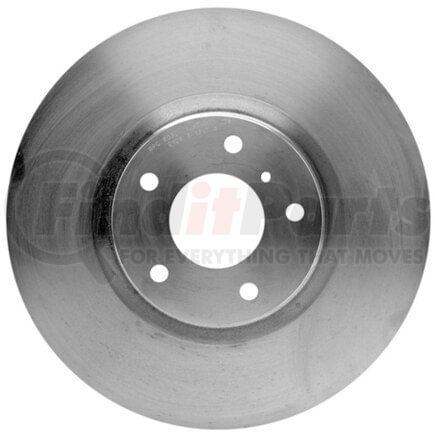

Raybestos R-Line Brake Rotor
Application Summary
2014-2011,2008-2005 Nissan Murano Front, 2013-2009 INFINITI G37 Front, 2008-2005 INFINITI G35 Front, 2006 Nissan Altima Front, 2008-2005 Nissan Maxima Front, 2020-2009 Nissan 370Z Front, 2010-2006 INFINITI M35 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980307R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.7 IN |
| Center Hole Diameter | 68.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.0 IN |
| Discard Thickness | 26.0 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 28.0 MM |
| Outside Diameter | 12.6 IN |
| Outside Diameter | 319.6 MM |
| Overall Height | 1.9 IN |
| Overall Height | 49.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Inside Diameter | 7.6 IN |
| Inside Diameter | 192.5 MM |
| Surface Type | Smooth |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 319.5 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 10.2 |
| Weight [cntrc] Lbs | 22.4 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352495766 |
RAYBESTOS 980307R Cross References
RAYBESTOS 980307R Fits Vehicles
- INFINITI FX45 (2003-2005)
- INFINITI FX35 (2003-2005)
- INFINITI Q40 (2015)
- INFINITI Q70L (2015-2019)
- INFINITI Q70 (2014-2019)
- INFINITI QX70 (2014-2018)
- INFINITI QX50 (2014-2015)
- INFINITI EX37 (2013)
- INFINITI M35h (2012-2013)
- INFINITI G25 (2011-2012)
- INFINITI M56 (2011-2013)
- INFINITI M37 (2011-2013)
- Nissan 370Z (2009-2020)
- INFINITI G37 (2009-2013)
- INFINITI EX35 (2008-2012)
- Nissan 350Z (2006-2009)
- Nissan Altima (2005-2006)
- INFINITI M45 (2006-2010)
- INFINITI M35 (2006-2010)
- Nissan Murano (2004-2014)
- Nissan Maxima (2005-2018, 2020-2023)
- INFINITI G35 (2005-2008)
