(888) 312-8812 Login SignupRAYBESTOS 66844R Raybestos R-Line Brake Rotor
$7749
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 24
RAYBESTOS 66844R Part Description
Manufacturer
Product Description

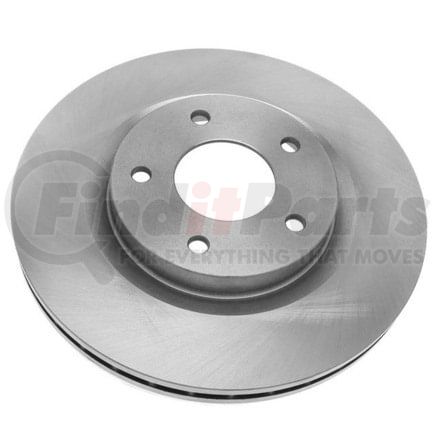

Raybestos R-Line Brake Rotor
Application Summary
2004-2003,2001-1994 Ford Mustang Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 66844R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.798 IN |
| Center Hole Diameter | 71.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.039 IN |
| Discard Thickness | 26.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.598 IN |
| Mounting Bolt Hole Diameter | 15.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.105 IN |
| Nominal Thickness | 28.05 MM |
| Outside Diameter | 12.995 IN |
| Outside Diameter | 330.05 MM |
| Overall Height | 1.715 IN |
| Overall Height | 43.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352366134 |
RAYBESTOS 66844R Cross References
RAYBESTOS 66844R Fits Vehicles
- Ford Mustang (1994-2001, 2003-2004)
