(888) 312-8812 Login SignupRAYBESTOS 96164R Raybestos R-Line Brake Rotor
$2899
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Feb 24
RAYBESTOS 96164R Part Description
Manufacturer
Product Description

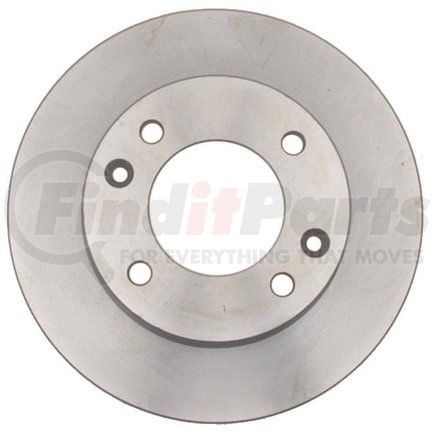

Raybestos R-Line Brake Rotor
Application Summary
1988-1986 Mazda RX-7 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96164R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.034 IN |
| Center Hole Diameter | 77.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.79 IN |
| Discard Thickness | 20.05 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.516 IN |
| Mounting Bolt Hole Diameter | 13.1 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 9.835 IN |
| Outside Diameter | 249.8 MM |
| Overall Height | 2.575 IN |
| Overall Height | 65.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352465981 |
RAYBESTOS 96164R Cross References
| Brand | Part Number |
|---|---|
| ABD6-243, 829352465981 | |
| ADVANCE AUTO PARTS | 141437, 802243, YH141437 |
| AMERICAN REMANUFACTURED | 789-14021, 89-14021 |
| AUTOSPECIALTY | JBR380, JBR380E |
| AUTOXTRA | 60852, AX3192 |
| AUTOZONE | 080-2188, 3192, 3192DG |
| BECK/ARNLEY | 080-2243, 083-2243 |
| BENDIX | 141437 |
| BRAKE HEADQUARTERS | BR08292 |
| BRAKEBEST | 96164, 96164R, 96164RGS, BD60852 |
| BrakeBest | 9165RGS |
| CALIFORNIA DRUM & ROTOR | 60852 |
| CENTRIC | 120.45021, 121.45021, 126.45021SL, 126.45021SR |
| CENTURY | 9302 |
| Casting Numbers | 210510-C, 31921, 325782 |
| Centric Parts | 120.45021, 121.45021, 126.45021SL, 126.45021SR |
| DELPHI | RB201 |
| DURA CORP | BR3192 |
| DuraGo | BR3192 |
| EIS BRAKES | D17376, D17466 |
| EUROROTOR | MA831 |
| GIRLING | GR843 |
| GREN | 51202 |
| ITM ENGINE COMPONENTS | 1601137 |
| MAZDA | FB0133251 |
| MIDAS | BR1681 |
| MIGHTY DISTRIBUTING SYSTEM | 3192 |
| MONROE BRAKES | BD60852 |
| NEWTEK AUTOMOTIVE | 3192 |
| Newtek Automotive USA | 3192 |
| QUALIS | 3192 |
| QUALITEE INTERNATIONAL | 64-74-190 |
| QUALITY BRAND | 3192 |
| ROADMATES | 526185 |
| ROCKHILL | 3192 |
| STANDARD ROTORS AND DRUMS | 3192 |
| THE UNIVERSAL GROUP | 112920 |
| TRUSTAR | 474190, R74190 |
| UAP | 3192 |
| Universal | 112920 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50506 |
| WAGNER | BD60852 |
| WAGNER BRAKE | BD60852 |
| WINHERE | YH2101 |
RAYBESTOS 96164R Fits Vehicles
- Mazda RX-7 (1986-1988)
