RAYBESTOS part description

Product Description

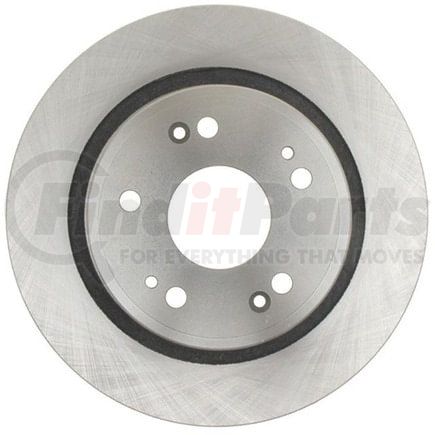

Raybestos R-Line Brake Rotor

Application Summary

2023,2017-2005 Honda Accord Rear, 2015 Honda Civic Rear, 2014-2009 Acura TSX Rear, 2022-2016 Acura ILX Rear

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.53 IN
Center Hole Diameter 64.25 MM
9565 Conventional
9540 Non-Directional
Discard Thickness 0.315 IN
Discard Thickness 8 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.495 IN
Mounting Bolt Hole Diameter 12.55 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.354 IN
Nominal Thickness 9 MM
Outside Diameter 11.091 IN
Outside Diameter 281.7 MM
Overall Height 1.917 IN
Overall Height 48.7 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352610275

Part Interchanges

Fits Vehicles

  • Acura ILX (2016-2022)
  • Honda Civic (2015)
  • Acura TSX (2009-2014)
  • Honda Accord (2005-2017)
