(888) 312-8812 Login SignupRAYBESTOS 76831R Raybestos R-Line Brake Rotor
$5049
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
RAYBESTOS 76831R Part Description
Manufacturer
Product Description

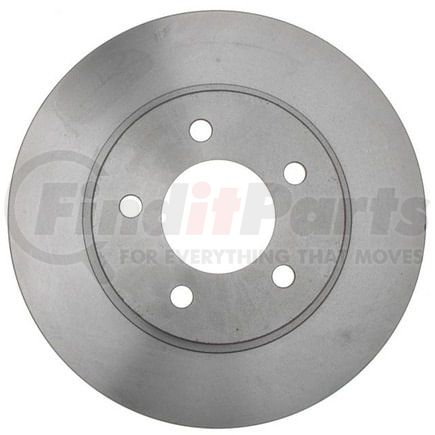

Raybestos R-Line Brake Rotor
Application Summary
1997-1993 Dodge Intrepid Front, 1997-1995 Chrysler Concorde Front, 1997-1995 Chrysler LHS Front, 1997-1995 Eagle Vision Front, 1996-1995 Chrysler New Yorker Front, 1997-1993 Chrysler Intrepid Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 76831R Specifications
Product Attributes
| Center Hole Diameter | 2.89 IN |
| Center Hole Diameter | 73.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.881 IN |
| Discard Thickness | 22.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.551 IN |
| Mounting Bolt Hole Diameter | 14 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 11.1 IN |
| Outside Diameter | 281.95 MM |
| Overall Height | 2.047 IN |
| Overall Height | 52 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367094 |
RAYBESTOS 76831R Cross References
| Brand | Part Number |
|---|---|
| 8RG2022S, 829352367094 | |
| ADVANCE AUTO PARTS | 145246, YH145246, YH145246C, YH145246P |
| AMERICAN REMANUFACTURED | 789-32034, 89-32034 |
| AUTOSPECIALTY | AR8334, AR8334E |
| AUTOXTRA | 8076831 |
| AUTOZONE | 5372, 5372B, 5372DG, 5372DL, DL5372 |
| BENDIX | 145246 |
| BOSCH | 16010164, RBR5372 |
| BRAKEBEST | 16010164, 76831, 76831FZN, 76831R, 76831RGS |
| BREMBO | 09.8817.85, 27202 |
| CENTRIC | 121.63034 |
| CHRYSLER | 04755028 |
| CONTINENTAL-CONTITECH | CW24705 |
| Casting Numbers | 211254-C, 325179, 53721 |
| DURA CORP | BR5372 |
| EAGLE (CARS) | 4755028 |
| Eagle | 4755028 |
| GREN | 602702 |
| MAGMA PRODUCTS | PMR143041 |
| MIGHTY DISTRIBUTING SYSTEM | 5372 |
| NEWTEK AUTOMOTIVE | 5372 |
| Newtek Automotive USA | 5372 |
| PROMAX | 14-5372 |
| QUALIS | 5372 |
| QUALITY BRAND | 5372 |
| STANDARD ROTORS AND DRUMS | 5372 |
| THE UNIVERSAL GROUP | 103529 |
| Universal | 103529 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50874 |
| WAGNER | BD125309 |
| WINHERE | 442173, YH2173 |
RAYBESTOS 76831R Fits Vehicles
- Chrysler Intrepid (1993-1997)
- Eagle Vision (1995-1997)
- Dodge Intrepid (1993-1997)
- Chrysler New Yorker (1995-1996)
- Chrysler LHS (1995-1997)
- Chrysler Concorde (1995-1997)
