(888) 312-8812 Login SignupCENTRIC 120.47031 Centric Premium Brake Rotor
Tap to view 4 more
MSRP: $69.14
$5649
Save $12.65
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 13
CENTRIC 120.47031 Part Description
Manufacturer
Product Description

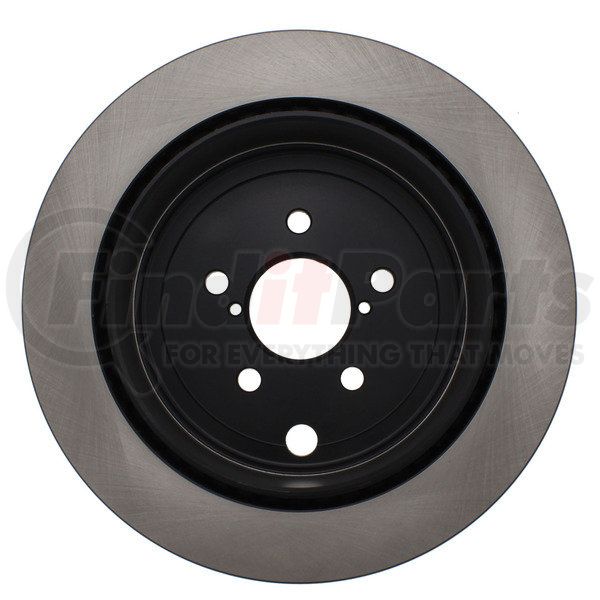

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.47031 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 3 |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Weight [cntrc] Kgs | 6.360 |
| Weight [cntrc] Lbs | 14.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.630 IN |
| Discard Thickness | 16.000 MM |
| Nominal Thickness | 18.000 MM |
| Nominal Thickness | 0.709 IN |
| Hat Finish | Coated |
| Overall Height | 2.500 IN |
| Overall Height | 63.500 MM |
| Outside Diameter | 289.800 MM |
| Outside Diameter | 11.409 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 190.000 MM |
| Nominal Drum Diameter | 7.480 IN |
| Bearings Included | No |
| Center Hole Diameter | 58.000 MM |
| Center Hole Diameter | 2.283 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.504 IN |
| Stud/Lug Hole Diameter | 12.800 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890619697 |
CENTRIC 120.47031 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980785FZN, 980785R |
| Neotek Premium Drums and Rotors | 106432GF |
| N/A | 850185, 120.47031, BD180416E, 44716, 90013023, 31555G, 26700AJ010, SU00300638, SU00310629, 79502, 980785 |
CENTRIC 120.47031 Fits Vehicles
- Toyota GR86 (2022-2023)
- Toyota 86 (2017-2020)
- Subaru Legacy (2010-2014)
- Scion FR-S (2013-2016)
- Subaru BRZ (2013-2020, 2022-2023)
- Subaru Outback (2010-2014)
CENTRIC 120.47031 Cross References
We have 3 alternatives for the 120.47031 by CENTRIC:
